9X118ETP

9X118ETP

$10.00 USD
$10.00 USD
Sale Sold out

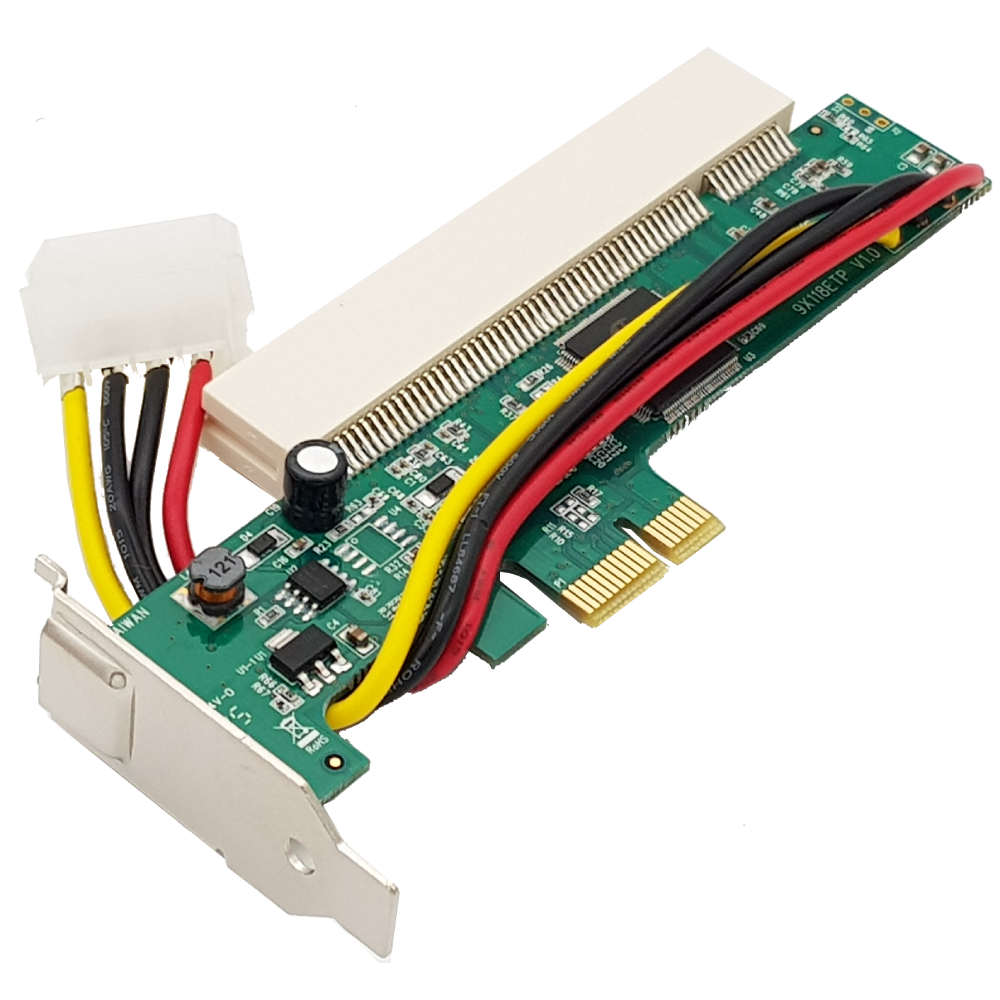

PCI EXPRESS TO PCI RISER CARD

  • Innovative bracket design adapts and secures the existing half-height/low profile bracket of the PCI Card
  • PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth
  • LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
  • No driver or software installation

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI ExpressCard Type: Standard ProfileChipset ID: Pericom - PI7C9X118SLInterface: PCI / PCI-X (5 / 3.3V)Port Numbers: 1

CONNECTOR(S)
Connector Type(s):1-PCI Express x1 MaleInternal Ports:1-LP4 (4 pin; Large Drive Power) Male1-PCI (5V, 32-bit) Slot Female

OS Independent; No additional drivers or software required

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
