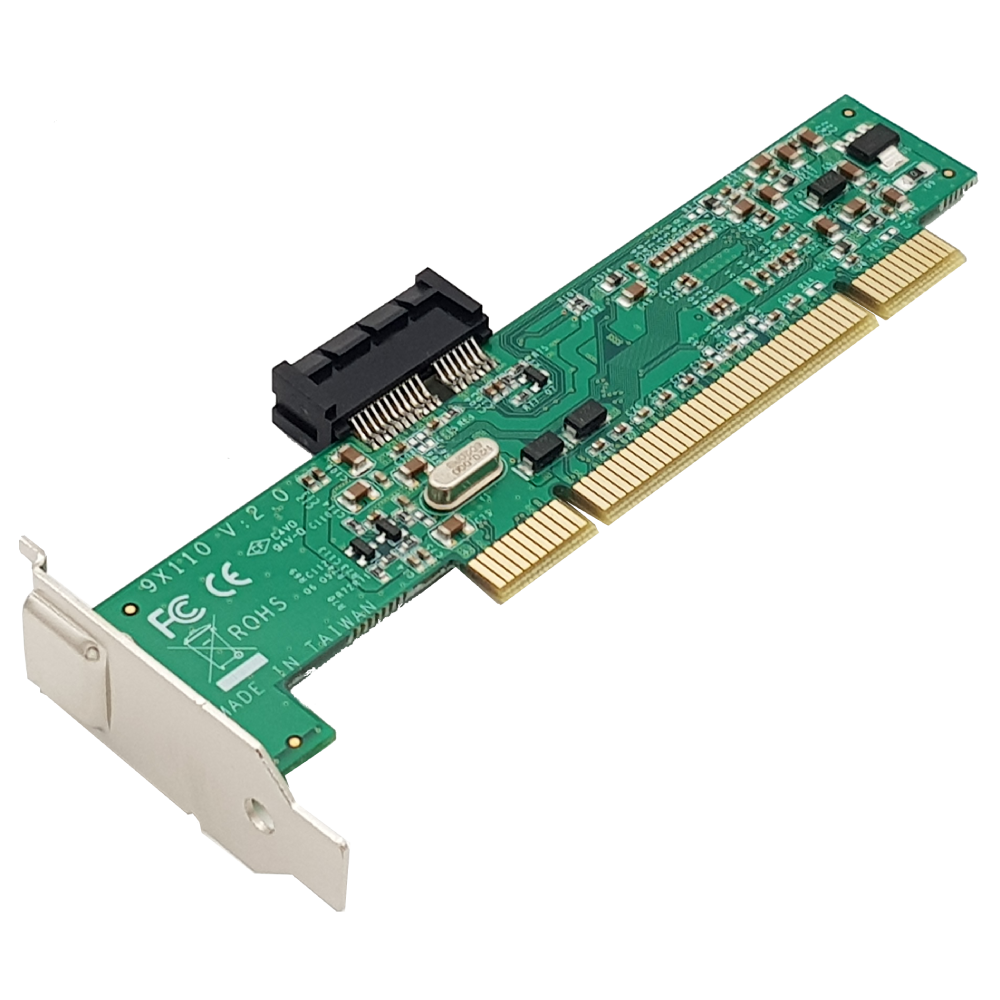

PCI TO PCI EXPRESS RISER CARD

  • Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
  • PCI revision 2.3 compliant with up to 133MBps of available bandwidth
  • Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)
  • Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
  • No driver or software installation

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:PCI / PCI-X (5 / 3.3V)Card Type: Standard ProfileChipset ID: Pericom - PI7C9X111SLInterface:PCI ExpressPort Numbers: 1

    Connector Type(s):1-PCI / PCI-X (Universal 3.3 & 5V, 32-bit) MaleInternal Ports:1-PCI Express x1 Slot Female

    OS Independent; No additional drivers or software required

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS

    DIMENSION
