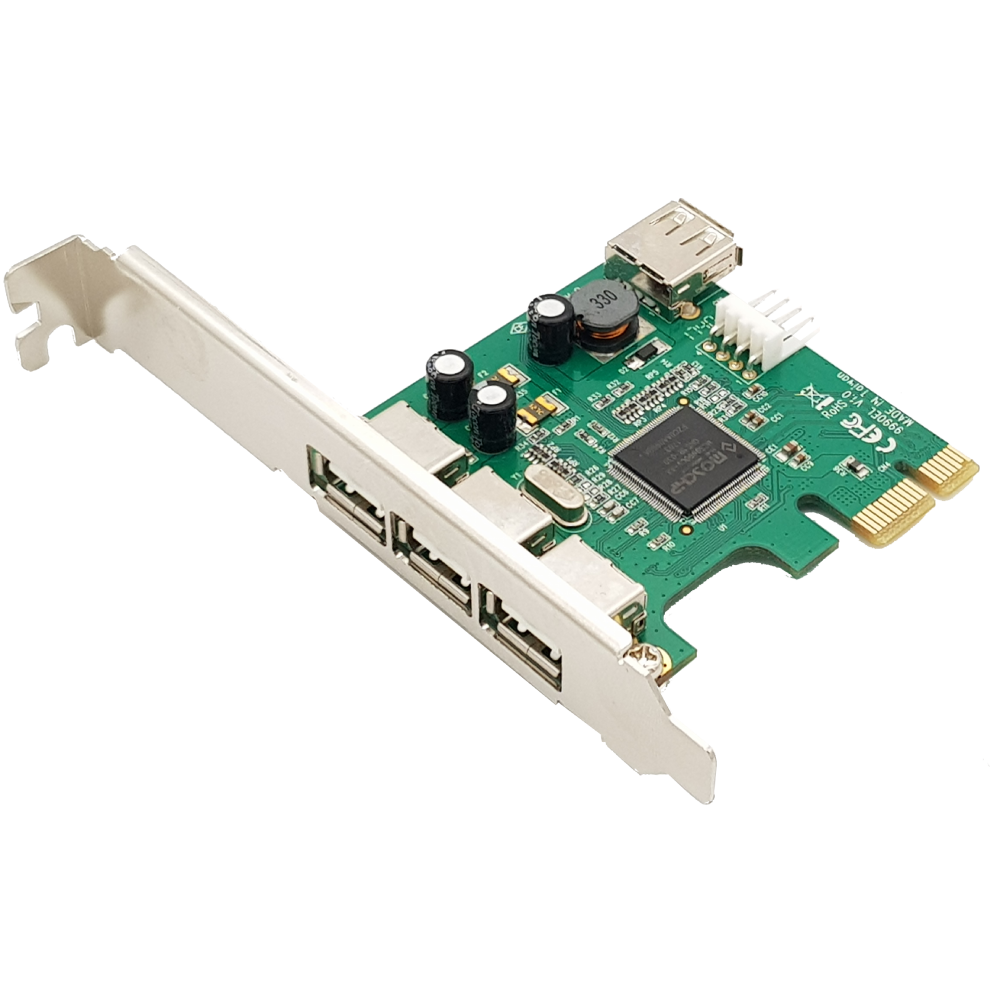

PCI-E 4-PORT USB2.0 CARD

  • 3-external USB 2.0 ports and 1-internal USB 2.0 port
  • High Speed USB 2.0 compliant, with support for data transfer rates up to 480Mbps
  • Backwards compatible with USB1.1/1.0 devices
  • Includes a Low Profile/Half-Height installation bracket

APPLICATION

  • Connect USB 2.0 peripherals to a legacy PC through a PCI slot
  • Expand system capabilities with additional external USB ports

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI-ECard Type:Low Profile (SP bracket incl.)Chipset ID:AXIS MCS9990Interface:USB 2.0Port Style:Integrated on CardPort Numbers:2

Type and Rate:USB 2.0 480MbpsUASP Support:Yes

Connector Type(s):1-PCI Express x1 MaleExternal Ports:3-USB 2.0 USB Type-A (9 pin) FemaleInternal Ports:1-Power (4pin) Plug,1-port USB 2.0 USB Type-A (9 pin) Female

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
