99100M2R4-422485

99100M2R4-422485

Regular price $15.00 USD
Regular price Sale price $15.00 USD
Sale Sold out

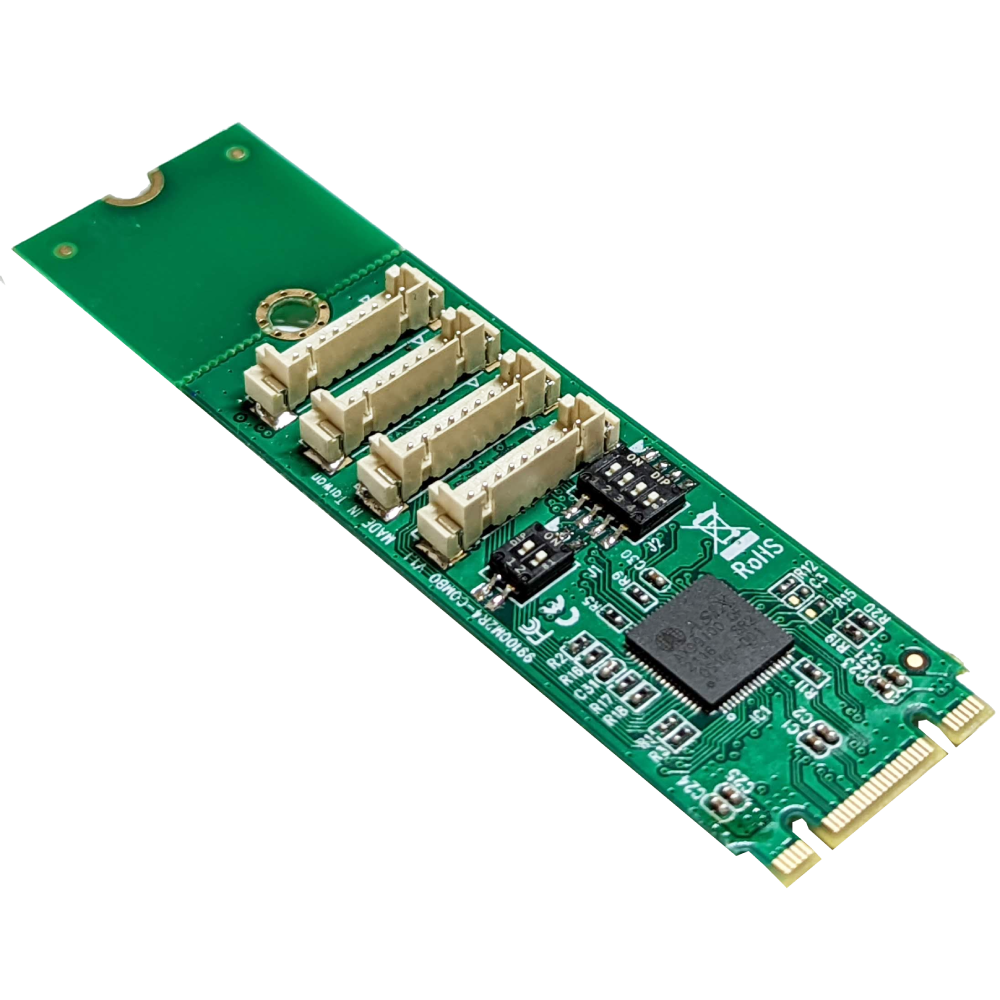

M.2 B+M KEY 4-PORT RS422/485 CARD

APPLICATION

  • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Connect specialized serial devices  (printers, scanners, ISDN terminal adapters and memory card readers)
  • Environmental Control (lighting, temperature, clocks)Entertainment (video lottery terminals, slot machines, gaming systems)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:M.2 b+M KeyCard Type:M.2 2280 / 2260Chipset ID: ASIX Moschip-AX99100Interface:SerialPort Numbers: 4

Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:921.6 KbpsParity:Even, Odd, None, Space and MarkSerial Protocol:RS-422/485

Connector Type(s):1 m.2 B+M Key External Ports::4-DB-9 (9 pin, D-Sub) Male

Windows® 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
