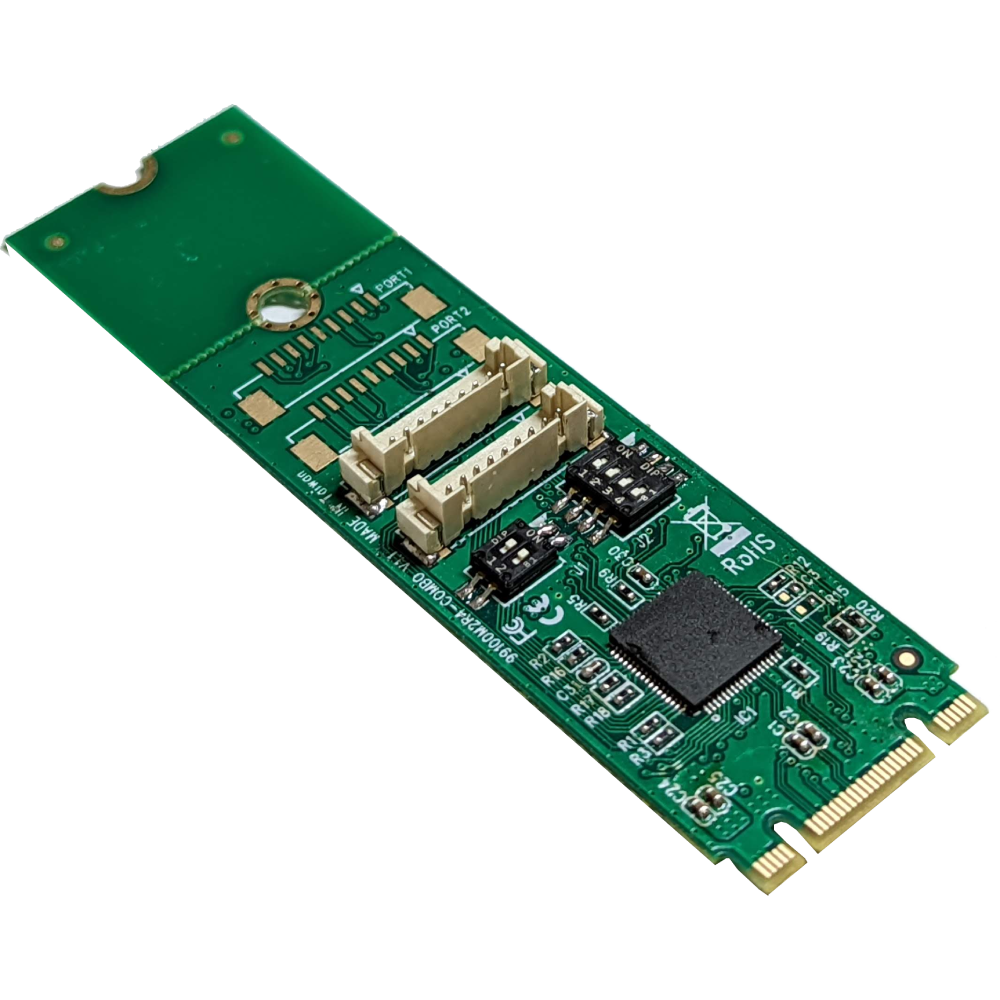

M.2 B+M KEY 2-PORT RS422/485 CARD

  • Native single chip design

  • PCI Express base spec 1.1 compliant .

  • PCI power management 1.2 compliant.

  • DMA/bus mastering facility for both UARTs.

  • 128-byte deep transmit/receive FIFOs.

  • 9,8,7,6 and 5-bit data framing.

  • Automated in-Band, Xon/Xoff flow control.

  • Advanced FIFO fill management.

  • Support RS232(P1) & RS422/485(P3).

  • Support 4 Wires 422/ 485 or 2 Wires 485 Mode.

  • Support 485 Half Duplex Echo Mode.

APPLICATION

  • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
  • Environmental Control (lighting, temperature, clocks)
  • Entertainment (video lottery terminals, slot machines, gaming systems)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:M.2 b+M KeyCard Type:M.2 2280 / 2260Chipset ID: ASIX Moschip-AX99100Interface:SerialPort Numbers: 2-Port 422/485

Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:921.6 KbpsParity:Even, Odd, None, Space and MarkSerial Protocol:RS-422/485

Connector Type(s):1 m.2 B+M Key External Ports::2-DB-9 (9 pin, D-Sub) Male

Windows® 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10,11Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
