99100ELR4

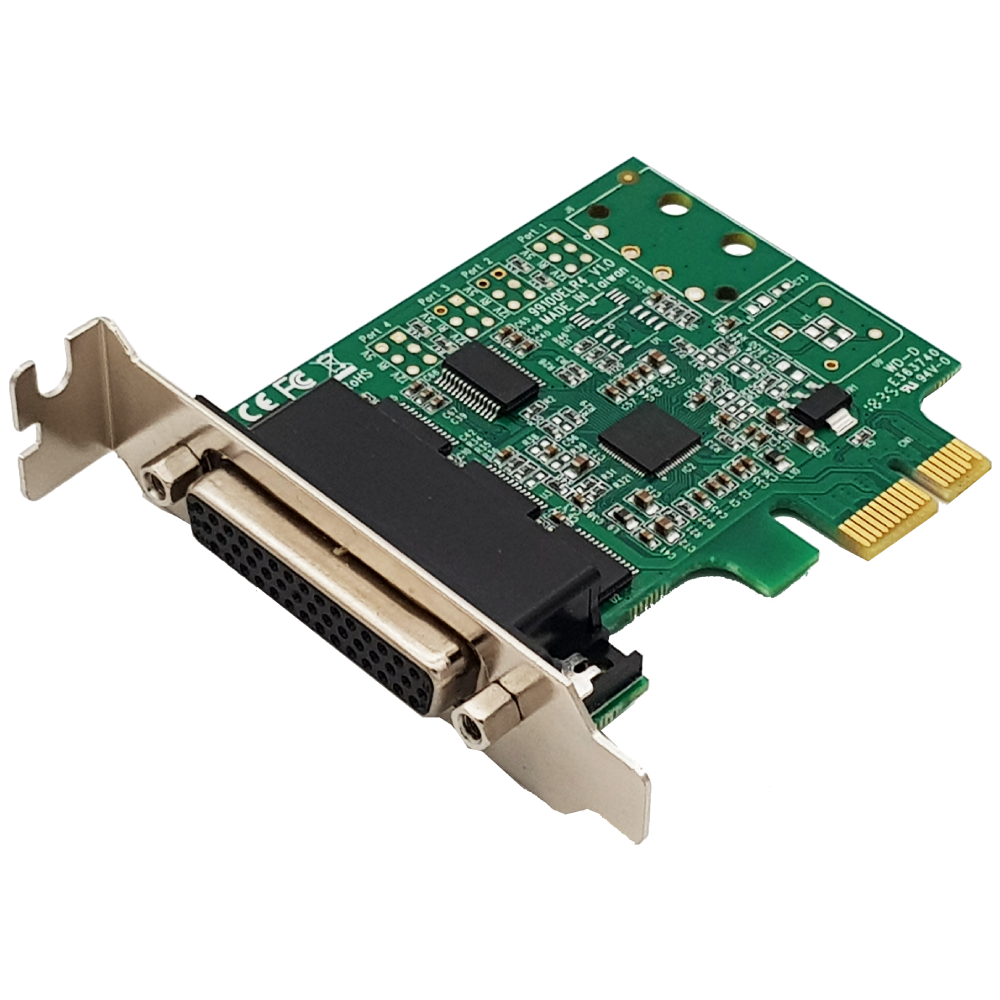

PCI-E 4-PORT RS232 CARD

• Includes a full profile and low profile/half-height bracket
• Native single chip design
• Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
• Supports hardware and software flow control
• Compliant with PCI Express base specifications revision 1.0a
• Automated out-of-band flow control using CTS/RTS and DSR/DTR

APPLICATION

• Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
• Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
• Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
• Environmental Control (lighting, temperature, clocks)
• Entertainment (video lottery terminals, slot machines, gaming systems)
• Healthcare (patient monitoring equipment, nurses' stations, modems)
• Security (UPS control, access key panels, video cameras, card readers, modems)
• Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
• Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

TECHNICAL SPECIFICATIONS

HARDWARE

Bus Type:PCI Express
Card Type:Low Profile (SP bracket incl.)
Chipset ID:ASIX Moschip-AX99100
Port Style:Dongle (Included)
Interface:Serial
Port Numbers: 4

DIMENSION
