99100ELR2

99100ELR2

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out

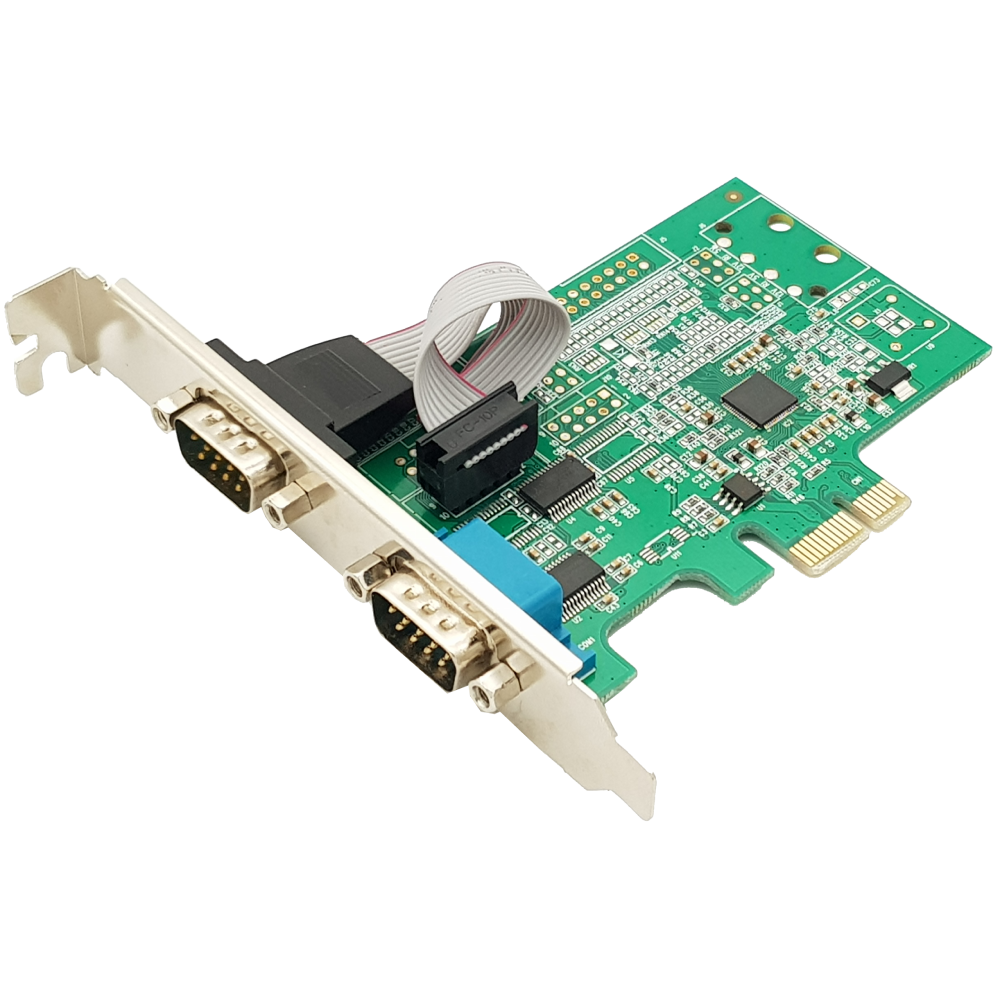

PCI-E 2-PORT RS232

    • Includes a full profile and low profile/half-height bracket
    • 2 high-speed RS232 serial port
    • Native single chip, single lane PCI Express
    • Selectable power output on pin 9 of the serial port
    • Automated in-band flow control using programmable Xon/Xoff
    • Supports x1,x2,x4,x8,x16(lane)PCI-Express connectors
    • Compliant with PCI Express base specifications revision 1.1

    APPLICATION

    • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
    • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
    • Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
    • Environmental Control (lighting, temperature, clocks)
    • Entertainment (video lottery terminals, slot machines, gaming systems)
    • Healthcare (patient monitoring equipment, nurses' stations, modems)
    • Security (UPS control, access key panels, video cameras, card readers, modems)
    • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
    • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

    TECHNICAL SPECIFICATIONS

    TECHNICAL SPECIFICATIONS

    Bus Type:PCI Express 1.1 compliantCard Type:Low Profile (SP bracket incl.)Chipset ID:ASIX Moschip-AX99100Port Style:Integrated on CardInterface:SerialPort Numbers: 2

    Data Bits: 5, 6, 7, 8, 9FIFO:128 BytesFlow Control:Automated in-Band, Xon/XoffMax Baud Rate:Serial-115.2KbpsParity:Even, Odd, Mark, Space, NoneSerial Protocol:RS-232

    Connector Type(s): 1 - PCI Express x1 MaleExternal Ports:2-DB-9 (9 pin, D-Sub) Male

    Windows® XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS
