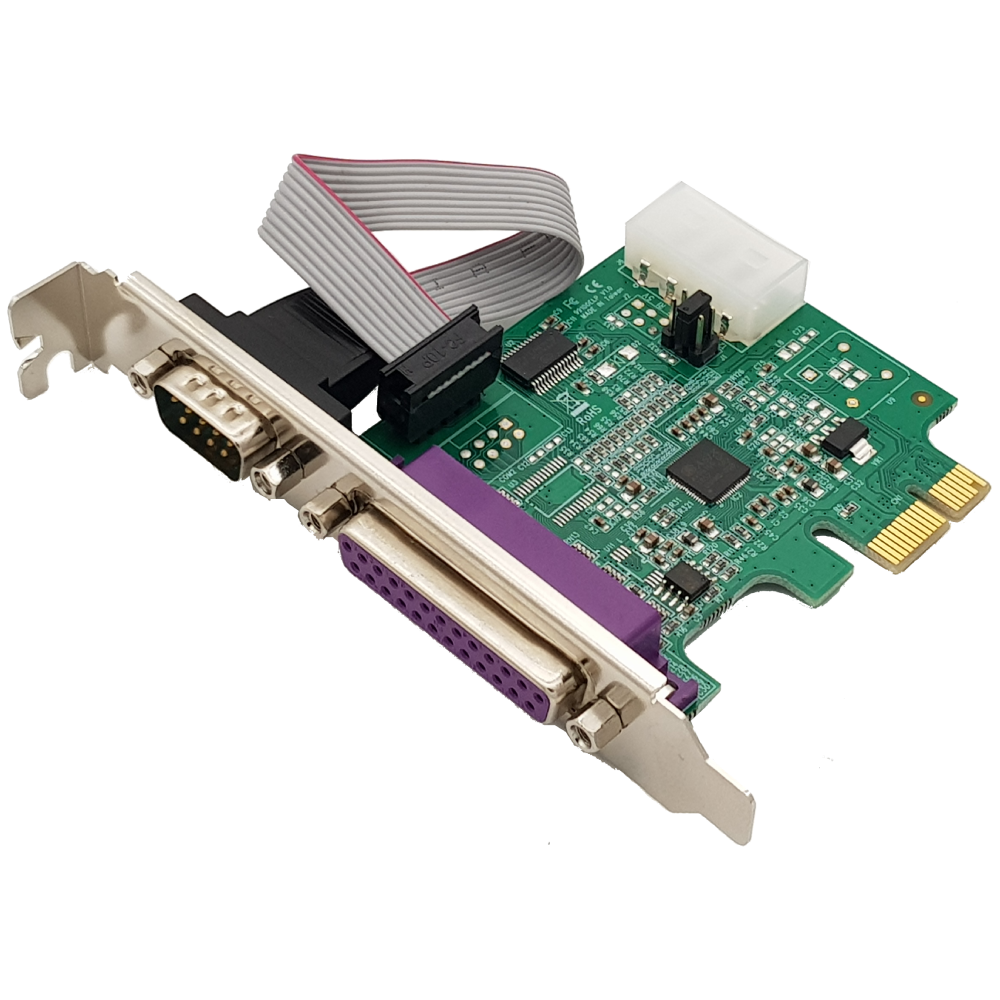

99100ELPR1

99100ELPR1

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out

PCI-E 1-PORT PARALLEL &
1-PORT RS232

  • Includes a full profile and low profile/half-height bracket
  • 1 high-speed RS232 serial port and 1 IEEE 1284 parallel port
  • Native single chip, single lane PCI Express
  • Selectable power output on pin 9 of the serial port
  • Automated in-band flow control using programmable Xon/Xoff
  • Supports x1,x2,x4,x8,x16(lane)PCI-Express connectors
  • Compliant with PCI Express base specifications revision 1.1

APPLICATION

  • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
  • Environmental Control (lighting, temperature, clocks)
  • Entertainment (video lottery terminals, slot machines, gaming systems)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

TECHNICAL SPECIFICATIONS

Bus Type:PCI Express 1.1 compliantCard Type:Low Profile (SP bracket incl.)Chipset ID:ASIX Moschip-AX99100Port Style:Integrated on CardInterface:Serial, Parallel IEEE 1284-compliant SPP/EPP/ECPPort Numbers: 2

Data Bits: 5, 6, 7, 8, 9FIFO:128 BytesFlow Control:Automated in-Band, Xon/XoffMax Baud Rate:Parallel-1.5Mbps, Serial-115.2KbpsParity:Even, Odd, Mark, Space, NoneSerial Protocol:RS-232

Connector Type(s): 1 - PCI Express x1 MaleExternal Ports:1-DB-9 (9 pin, D-Sub) Male, 1 - DB-25 (25 pin, D-Sub) Female

Windows® XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
