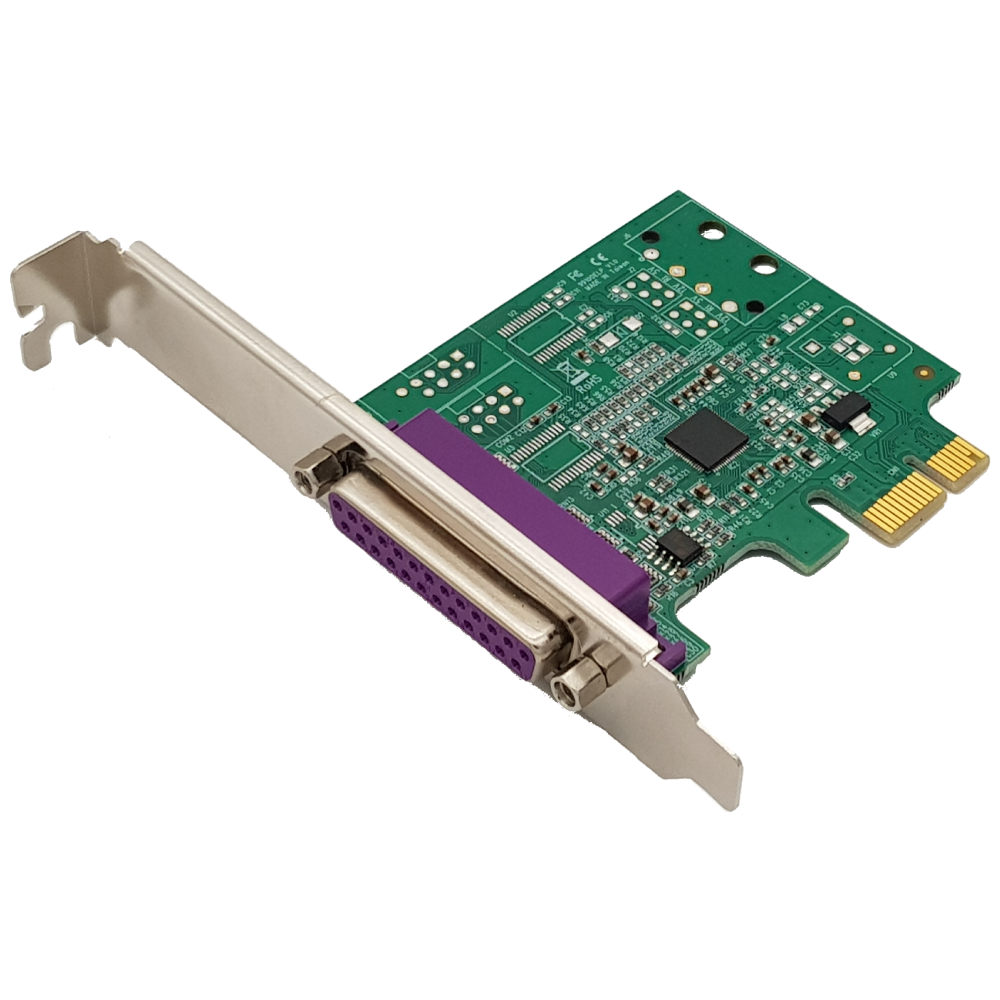

99100ELP-P

99100ELP-P

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out

PCI-E 1-PORT PARALLEL

    • Includes a full profile and low profile/half-height bracket

    • 1 IEEE 1284 parallel port

    • Native single chip, single lane PCI Express

    • SPP/EPP/ECP Parallel port fully supports existing Centronics interface

    • Supports x1,x2,x4,x8,x16(lane)PCI-Express connectors

    • Compliant with PCI Express base specifications revision 1.1

    APPLICATION

    Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers.

    TECHNICAL SPECIFICATIONS

    Bus Type:PCI Express 1.1 compliantCard Type:Low Profile (SP bracket incl.)Chipset ID:ASIX Moschip-AX99100Port Style:Integrated on CardInterface:Parallel IEEE 1284-compliant SPP/EPP/ECPPort Numbers: 1

    Max Baud Rate:Parallel-2.5Mbps

    Connector Type(s):1- CI Express x1 MaleExternal Ports:1-DB-25 (25 pin, D-Sub) Female

    Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS

    DIMENSION
