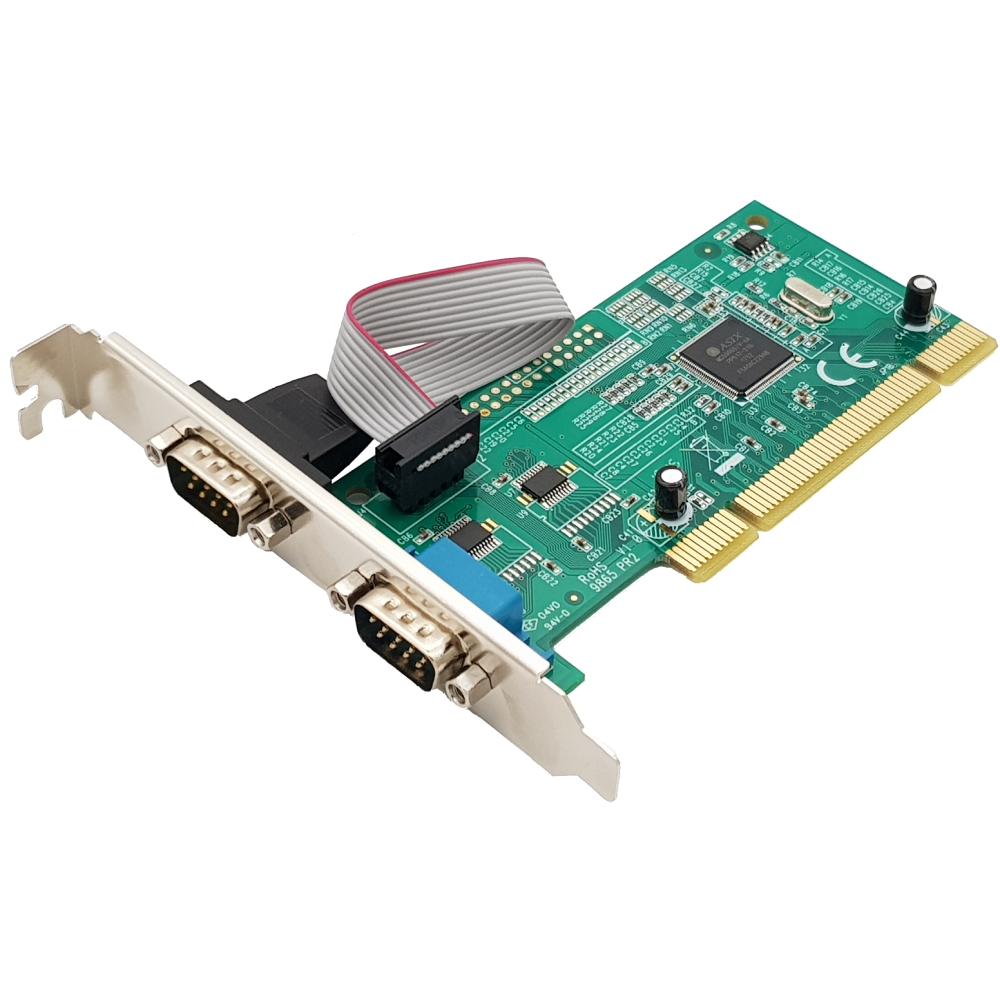

9865R2

9865R2

$10.00 USD
$10.00 USD
Sale Sold out

PCI 2-PORT RS232

    • Includes optional low profile/half-height mounting bracket
    • Native single chip design
    • Compliant with PCI Rev. 2.2 specifications
    • PCI Power Management Rev. 1.1 compliant
    • IRQ sharing eliminates conflicts between multiple cards

    APPLICATION

    • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
    • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
    • Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
    • Environmental Control (lighting, temperature, clocks)
    • Entertainment (video lottery terminals, slot machines, gaming systems
    • Healthcare (patient monitoring equipment, nurses' stations, modems
    • Security (UPS control, access key panels, video cameras, card readers, modems)
    • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
    • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:PCI / PCI-X (5 / 3.3V)Card Type:Standard Profile (LP bracket incl.)Chipset ID:ASIX Moschip-MCS9865Port Style:Integrated on CardInterface:SerialPort Numbers:2

    Data Bits: 5, 6, 7, 8FIFO:Serial-32 BytesMax Baud Rate:115.2 KbpsParity:Even, Odd, None, Space and MarkSerial Protocol:RS-232

    Connector Type(s):1-PCI MaleExternal Ports:2-DB-9 (9 pin, D-Sub) Male

    Windows® XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    Certification
    CE - FCC - ROHS
