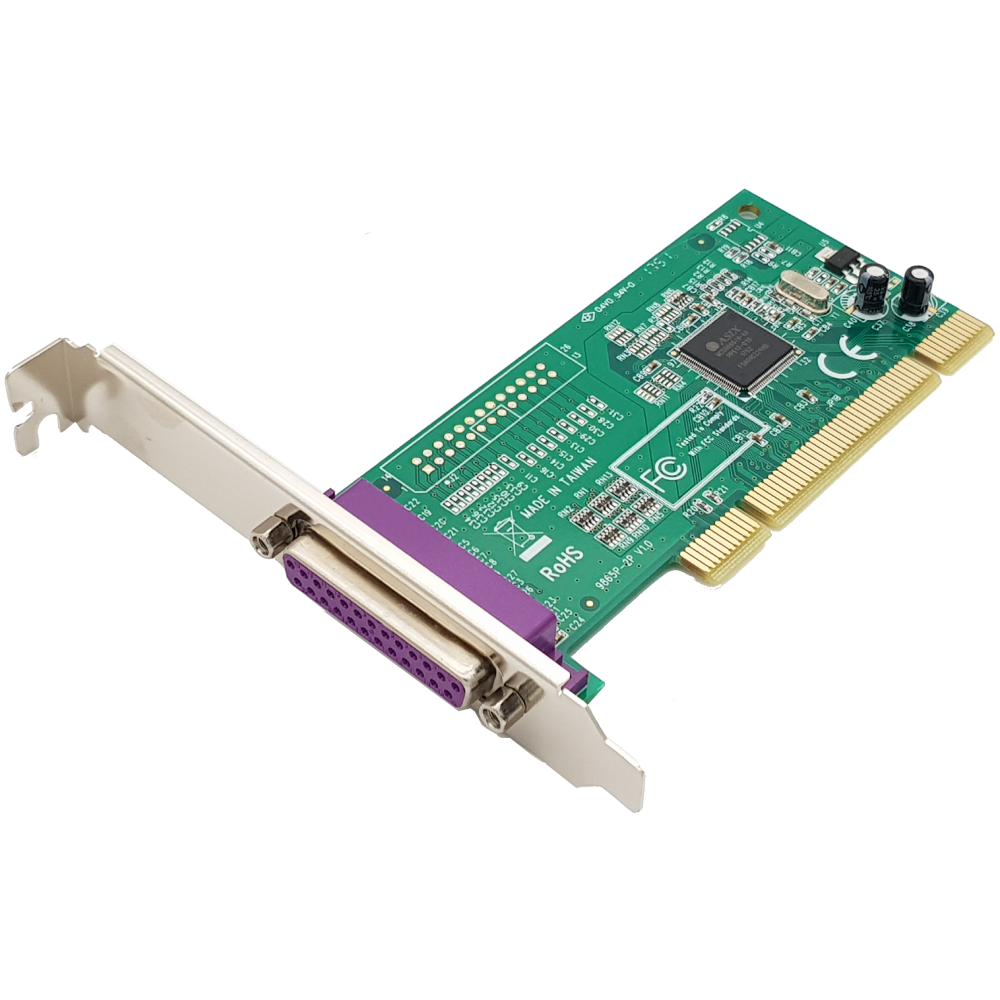

PCI 1-PORT PARALLEL CARD

  • Includes optional low profile/half-height mounting bracket
  • Native single chip design
  • Compliant with PCI Rev. 2.2 specifications
  • PCI Power Management Rev. 1.1 compliant
  • IRQ sharing eliminates conflicts between multiple cards

APPLICATION

  • Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers.

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:PCI / PCI-X (5 / 3.3V)Card Type: Standard Profile (LP bracket incl.)Chipset ID:ASIX-Moschip MCS9865Port Style:Integrated on CardInterface:Parallel EPP, ECP, SPP and BPPPort Numbers: 1

    FIFO:Parallel: 16-BytesData transfer Rate:1.5 Mbits/secParity:Even, Odd, None, Space and Mark

    Connector Type(s):1-PCI MaleExternal Ports::1-DB-25 (25 pin, D-Sub) Female

    Windows®XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS

    DIMENSION
