9815MEP-2

9815MEP-2

$20.00 USD
$20.00 USD
Sale Sold out

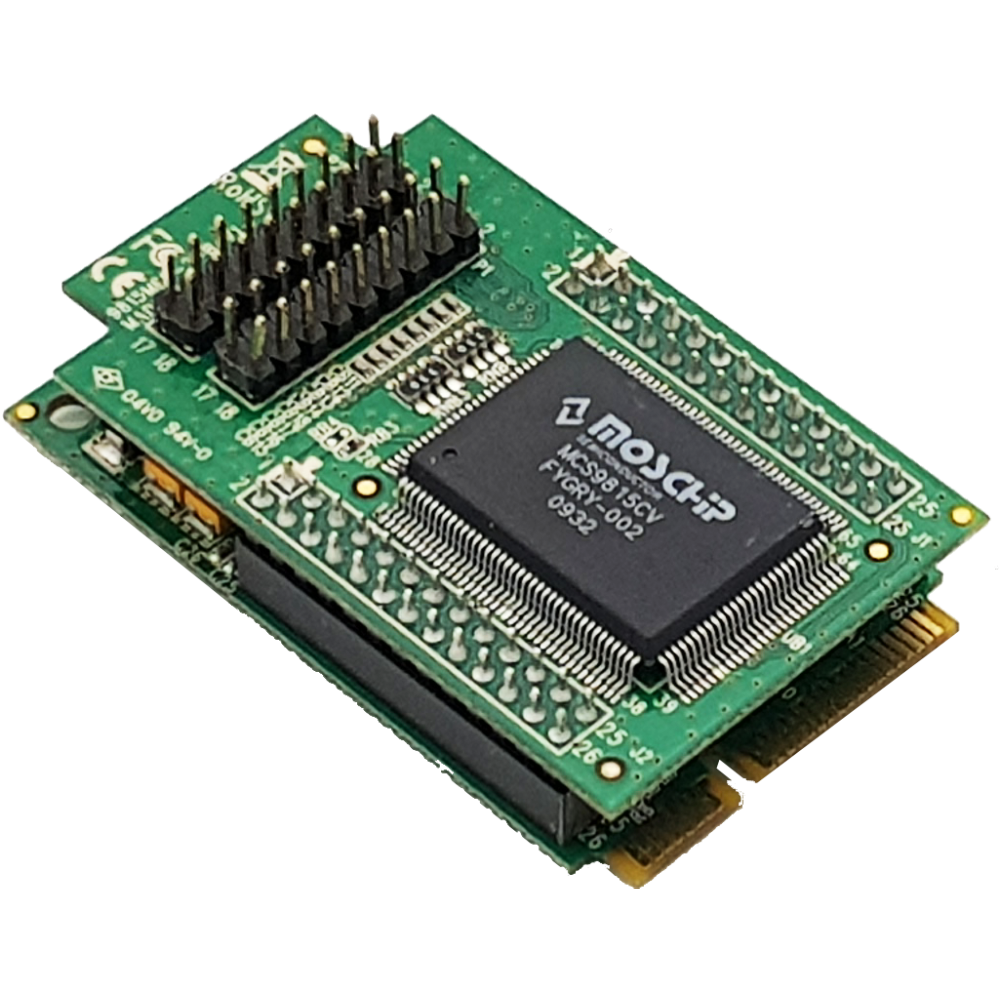

MINIPCIE 2-PORT PARALLEL CARD

  • 2 IEEE 1284 parallel port

  • Native single chip, single lane PCI Express

  • SPP/EPP/ECP Parallel port fully supports existing Centronics interface

  • Supports x1,x2,x4,x8,x16(lane)PCI-Express connectors

  • Compliant with PCI Express base specifications revision 1.1

APPLICATION

  • Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers.

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:Mini PCI-eCard Type:EmbeddedChipset ID:ASIX Moschip-MCS9815 Port Style:Dongle (Included)Interface:Parallel IEEE 1284-compliant SPP/EPP/ECPPort Numbers: 2
PERFORMANCE
Max Baud Rate:Parallel-2.5MbpsParity:Even, Odd, Mark, Space, None

CONNECTOR(S)
Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleExternal Ports:2-DB-25 (25 pin, D-Sub) Female

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
