9230EL

9230EL

Regular price $15.00 USD
Regular price Sale price $15.00 USD
Sale Sold out

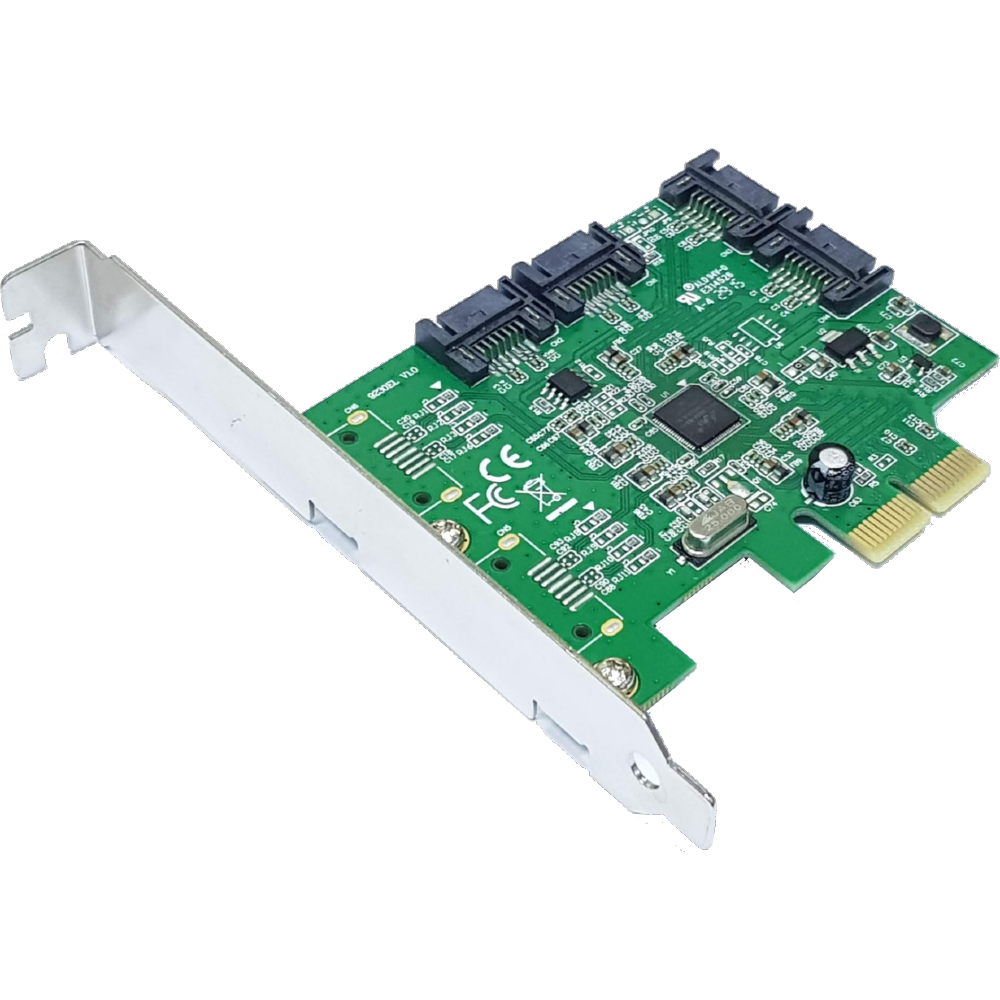

PCI-E 4-PORT SATA III CARD

  • Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps

  • Port Multiplier FIS-based and Command-based switching supported

  • Compliant with PCI Express 2.0 standards

  • Uses existing SATA I/II connectors and cabling

  • Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands

  • Ships with a full profile bracket install, low profile included

  • Includes a Low-Profile/half-height installation bracket

 APPLICATION

  • Add internal SATA 6Gbps port for connecting SATA rev 3.0 (6Gbps) Hard Drives
  • High performance internal SATA storage solution
  • Multimedia streaming or video editing

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI Express X1Card Type:Low Profile (SP bracket incl.)Chipset ID:Marvell 88SE9230Interface:SATA IIIPort Style:Integrated on CardPort Numbers:4

ATAPI Support:YesBootable:YesMaximum Data Transfer Rate:6 GbpsNumber of Drives Supported Through Port Multiplier:1 to 5Number of Ports That Support Port Multiplier:2 (can only use 1 PM at a time)Port Multiplier:YesType and Rate:SATA III (6 Gbps)

Connector Type(s):1-PCI Express x1 MaleInternal Ports:4-SATA (7 pin, Data) Plug

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

Certification
CE - FCC - ROHS

DIMENSION
