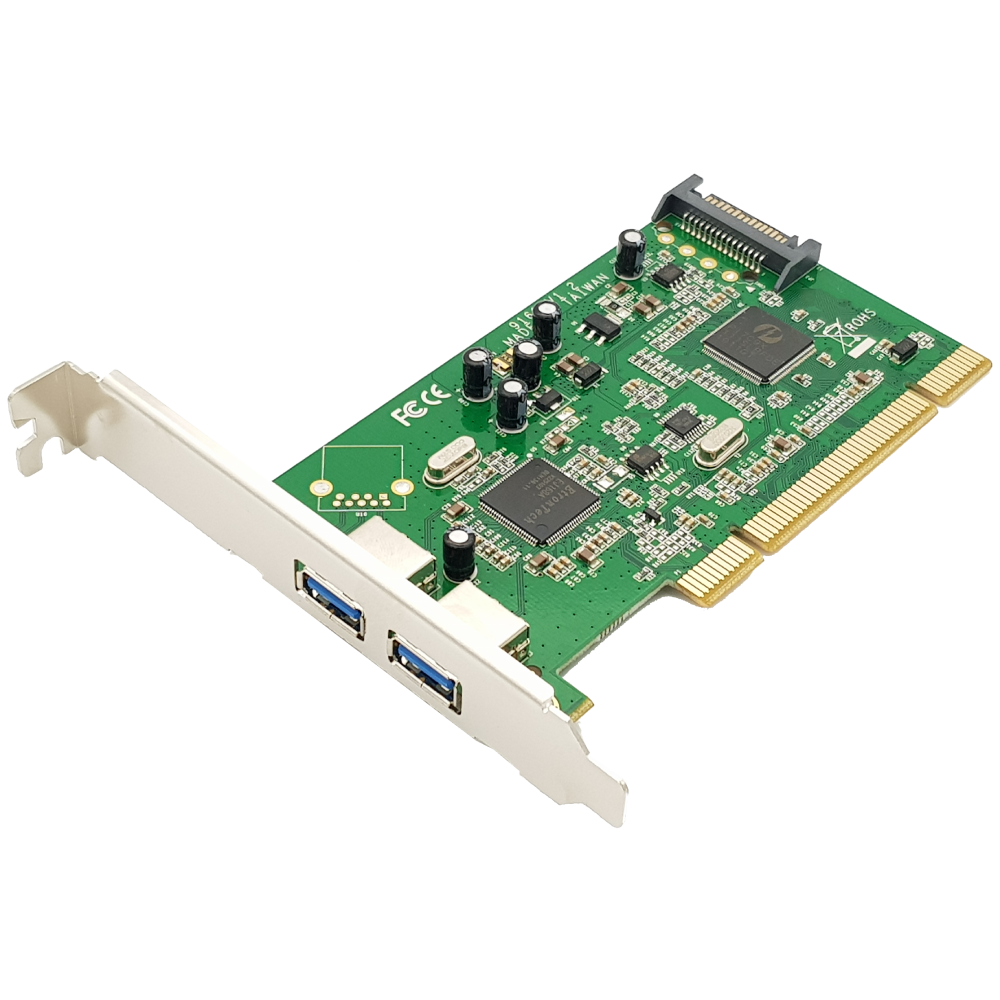

PCI2-PORT USB3.2 GEN1 CARD

  • 2 external Super Speed USB 3.0 ports
  • Provides up to 900mA of power over USB 3.0
  • Backward compatible with USB 2.0/1.x devices
  • Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
  • Compliant with PCI Specification 3.0
  • Includes a Low Profile/Half-Height installation bracket

APPLICATION

  • Connect USB 3.0 peripherals to a legacy PC through a PCI slot
  • Expand system capabilities with additional external USB ports

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI / PCI-X (5 / 3.3V)Card Type:Low Profile (SP bracket incl.)Chipset ID:Etron EJ168Interface:USB 3.2 Gen 1Port Style:Integrated on CardPort Numbers:2

Maximum Data Transfer Rate:1.3 Gbps (PCI Bus)Type and Rate:USB 3.2 Gen 1 - 5 Gbit/sUASP Support:Yes

Connector Type(s):1-PCI Express x1 MaleExternal Ports:2-USB 3.2 USB Type-A (9 pin) FemaleInternal Ports:1-SATA Power (15 pin) Plug

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
