8552ELR8SC

8552ELR8SC

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out

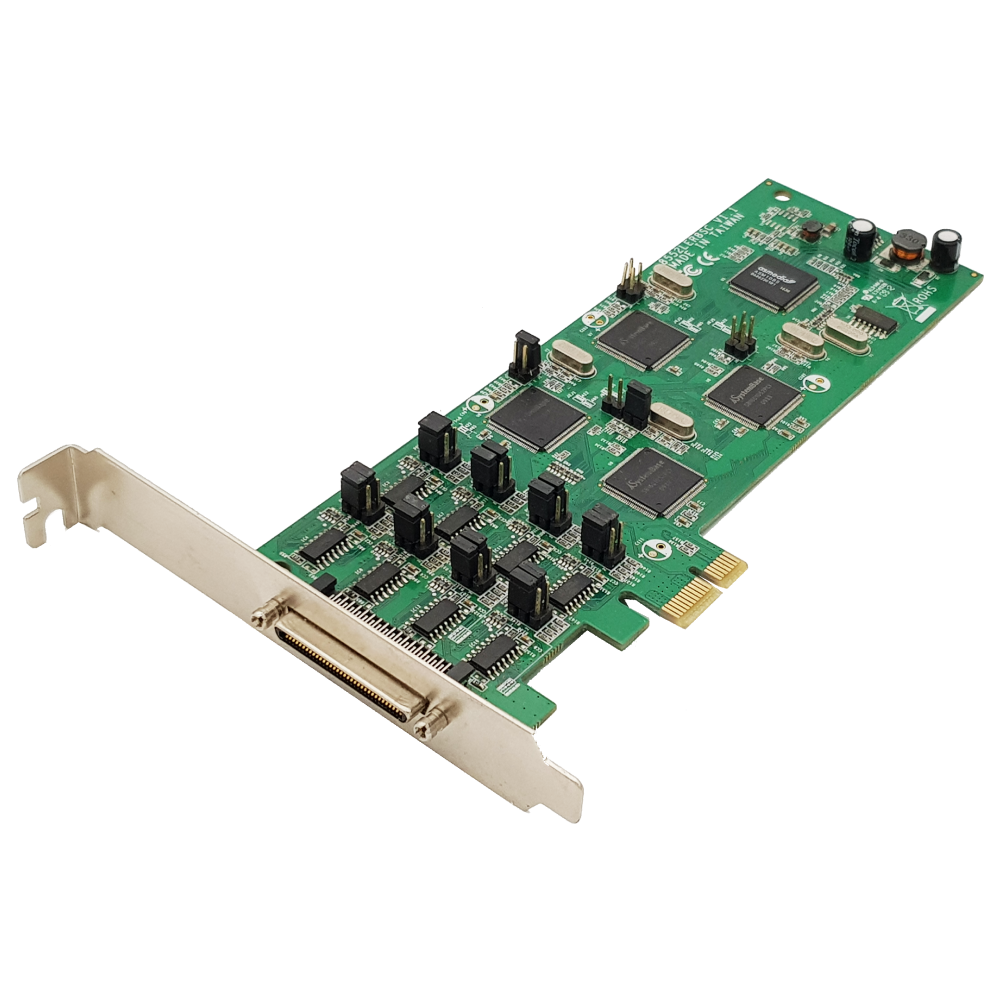

PCI-E 8-PORT RS232/422/485

(OPTIONAL)

  • Includes a full profile and low profile/half-height bracket
  • Supports RS232, RS422, RS485 2 wire, and RS485 4 wire modes
  • Each port can be set independently
  • 921.4Kbps maximum baud rate per port

APPLICATION

Add RS232, RS422, and RS485 support to a Desktop, Server, or Embedded systemIdeal for lab environments where serial requirements may changeCommunicate with two different serial modes from the same PCI card

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type: PCI Express Rev.2.2 compliantCard Type: Low Profile (SP bracket incl.)Chipset ID:SystemBase-SB16C1052PCIPort Style:Integrated on CardInterface:SerialPort Numbers: 8

Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:921.4 KbpsFlow Control:Hardware, Auto Xon/Xoff, NoneParity:None, Even, OddSerial Protocol:RS-232/422/485

Connector Type(s): 1 - PCI Express x1 MaleExternal Ports::8-DB-9 (9 pin, D-Sub) Male

Windows® DOS, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
