850I-16

850I-16

$10.00 USD
$10.00 USD
Sale Sold out

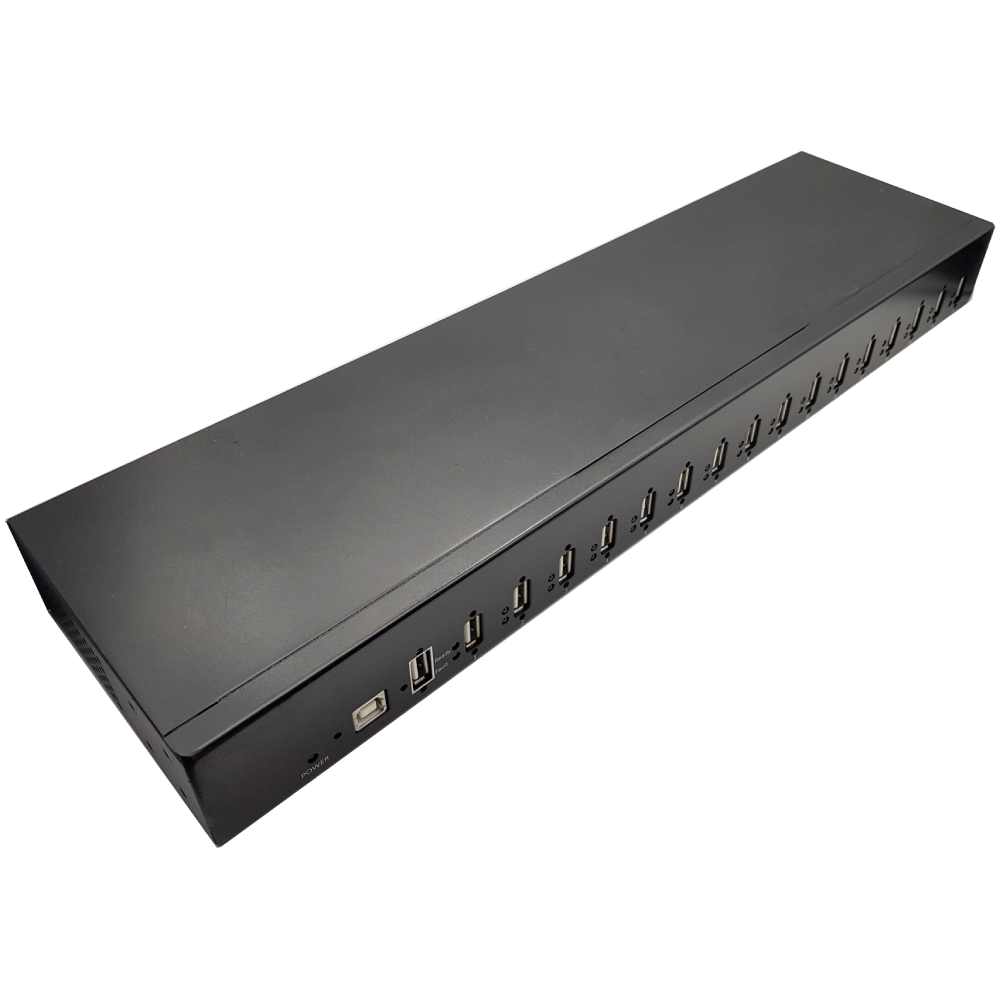

16-PORT INDUSTRIAL USB 2.0 HUB WITH ESD PROTECTION & 350W SURGE PROTECTION

  • Protects your connected devices with 20kV Air and 15kV Contact ESD protection
  • Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails
  • Offers flexible, wide-range power inputs with a 12-40V DC terminal block and Dc jack
  • Equipped with a Multi-Transaction Translator (MTT) on each DFP port
  • Expandable, Link to another device,Up to 4 Devices( 64-Port)

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:USB 2.0Chipset ID:GENYSYS GL850GInterface:USB 2.0Port Style:External HubPort Numbers:16

ESD Protection: +/-20kV (Air) +/-15kV (Contact)Maximum Data Transfer Rate:480 MbpsType and Rate:USB 2.0 - 480 Mbit/s

Connector Type(s):1 - Terminal Block (2 Wire)1 - Dc Jack1 - USB B (4 pin) Female1- USB Type-A (4 pin) USB 2.0 Female(Link to another Device)16 - USB Type-A (4 pin) USB 2.0 Female

OS independent; No software or drivers required

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
