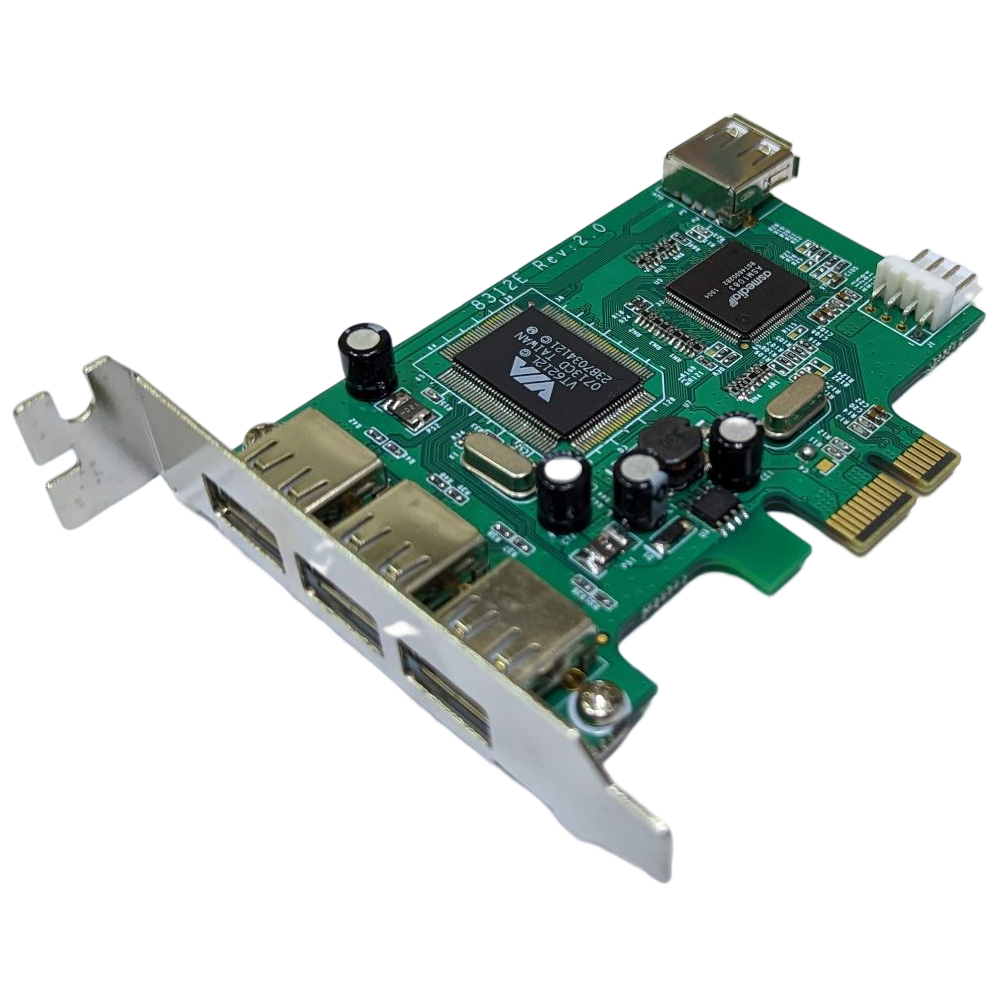

PCI-E 4-PORT USB2.0 CARD

  • Compliant with Universal Serial Bus 2.0 specification Revision 1.0.

  • Compliant with EHCI (Enhanced Host Controller Interface) specifications Revision

  • 1.0.

  • Supports simultaneous operation of multiple USB 2.0 and USB 1.1 devices.

  • Expands 4 external USB2.0 Speed ports on the system.

  • Each USB port supplies maximum +5V / 500mA power output to USB device.

  • Built-in 4-pin power connector for receiving extra power supply from system.

  • Hot-swapping feature allows you to connect/disconnect devices without

  • powering down the system.

  • Fully RoHS compliant.

APPLICATION

  • Expand the USB capabilities of your system with additional USB ports, or install the card as a vital hardware component when building a new PC
  • Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 2.0 external storage solutions

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI Express X1Card Type:Low Profile (SP bracket incl.)Chipset ID:VIA VT6212Industry Standards:USB Specification Rev. 2.0PCI Express Base Specification Rev. 3.0Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0Interface:USB 2Port Style:Integrated on CardPort Numbers:4

Maximum Data Transfer Rate:480MbpsType and Rate:USB2.0UASP Support:Yes

Connector Type(s):1-PCI Express x1 MaleExternal Ports:2-USB 2.0 A type FemaleInternal Ports:1-4pin Power Plug

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
