8257ME

8257ME

$20.00 USD
$20.00 USD
Sale Sold out

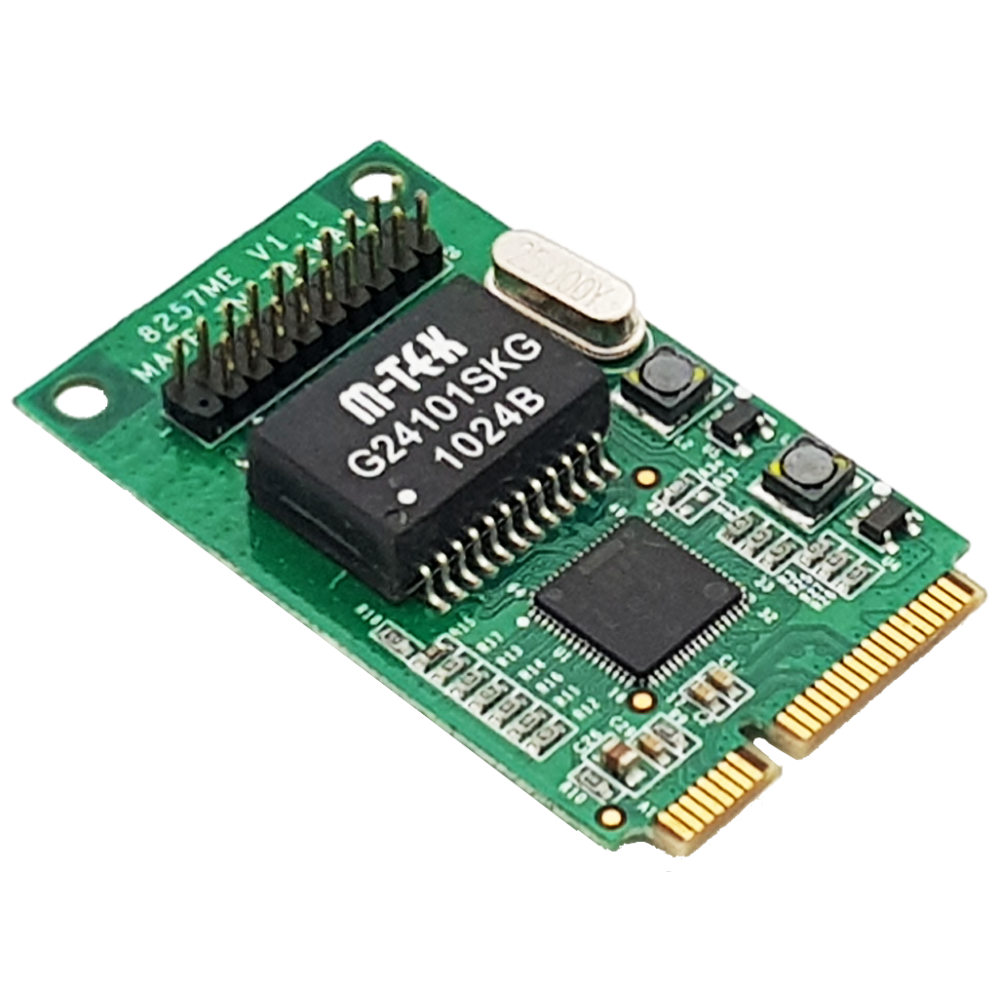

MINIPCIE 1-PORT GIGA LAN CARD

  • 10/100/1000Mbps compatible RJ45 Ethernet port
  • Gigabit detection and Link/Activity LED indicators
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
  • 10/100/1000 Ethernet Connection
  • Fast Ethernet or Gigabit Ethernet network
  • Support for hardware-based time stamping of
  • IEEE 1588 and 802.1as packets enabling highprecision time synchronization over Ethernet
  • Supports 9018 Byte Jumbo Frames

APPLICATION

  • Upgrade from 10/100 Ethernet capability to Gigabit capability
  • Add an Ethernet port to a workstation or server computer, for redundancy or bridging
  • Add networking capabilities to an old system with no Ethernet port

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:Mini PCI-eCard Type:EmbeddedChipset ID:Intel® 82574L Industry Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3abInterface:RJ45 (Gigabit Ethernet)Port Style:Integrated on CardPort Numbers:1

Auto MDIX:YesCompatible Networks:10/100/1000 MbpsFull Duplex Support:YesJumbo Frame Support:9K max.Maximum Data Transfer Rate:1000 MbpsSupported Protocols:CSMA/CD

Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleExternal Ports:1-RJ-45

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
