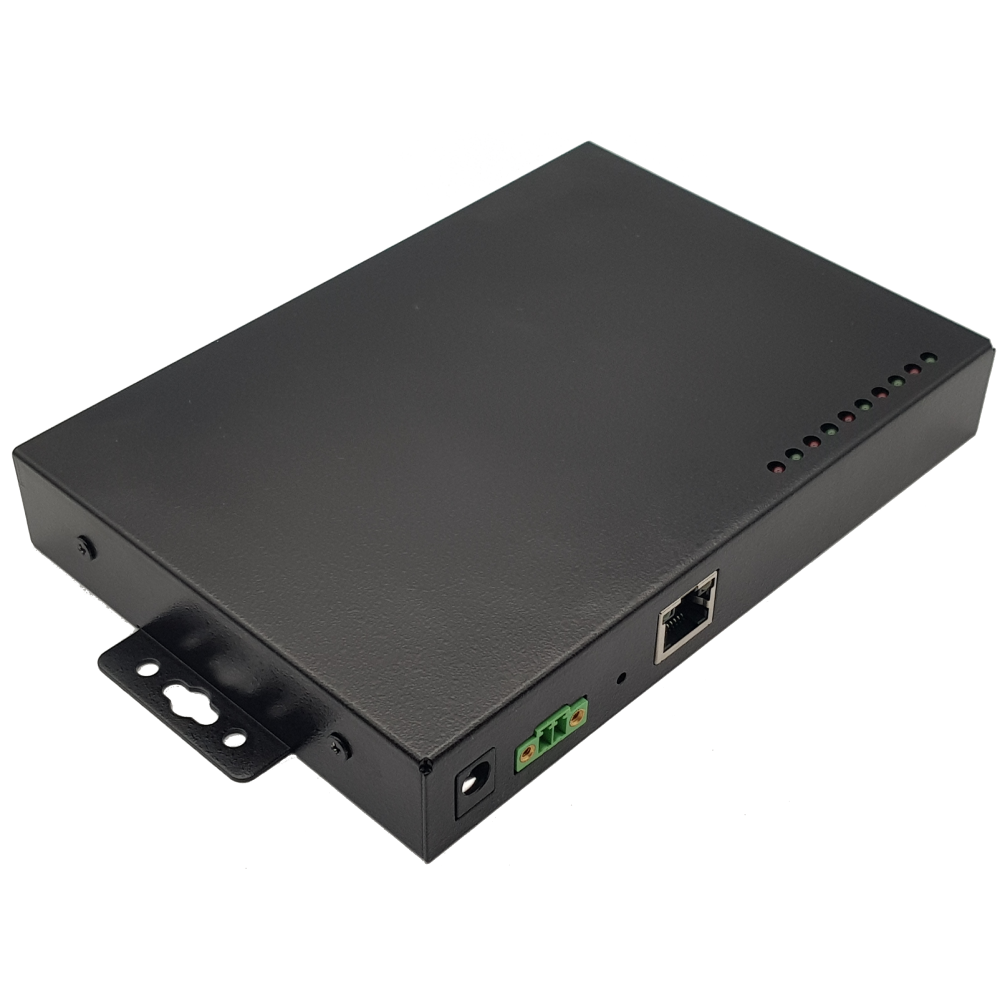

4-PORT SERIAL-TO-IP ETHERNET DEVICE SERVER

  • Four RS232 (DB9) serial ports, integrated into a durable, metal housing that’s ideal for industrial environments
  • Built-in mounting brackets let you easily install the device server to a wall or surface
  • Redundant power input using the provided power adapter, or 9~36V DC terminal block input
  • Up to 460.8Kbps serial baud rate
  • Remote management and customization using the provided Windows based VCOM software or the Web interface
  • Supports Telnet, ICMP, IP, TCP, UDP, DHCP and BOOTP protocols
  • 15kV Air and 8kV contact ESD (Electrostatic Discharge) Protection
  • 10/100Mbps RJ45 port that supports IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) protocols

TECHNICAL SPECIFICATIONS

HARDWARE
Industry Standards:IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TXInterface:SerialPorts:4

Auto MDIX:YesCompatible Networks:10/100 MbpsData Bits:7, 8Flow Control:XON/XOFF, RTS/CTS, NoneFull Duplex Support:YesIsolation:2500 VrmsMax Baud Rate:460.8 KbpsParity:None, Even, Odd, Space, MarkRemote Management Ability:YesSerial Protocol:RS-232Supported Protocols:ICMP, IP, TCP, UDP, DHCP, BOOTP, TelnetSurge Protection:ESD (Electrostatic Discharge) Protection: 15kV Human Body Model (HBM) 15kV IEC1000-4-2 Air8kV IEC1000-4-2 Contact

Connector Type(s):4 - DB-9 (9 pin, D-Sub) Male1 - RJ-45 Female1 - Terminal Block (2 Wire)1 - DC Jack

Virtual COM software - Windows® Only: Windows Vista, 7, 8, 8.1, 10Windows Server® 2008 R2, 2012, 2016, 2019
Note: The device server’s hardware is compatible with Mac OS and Linux®; however, the provided Virtual COM software is not compatible with these operating systems. When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI.

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
