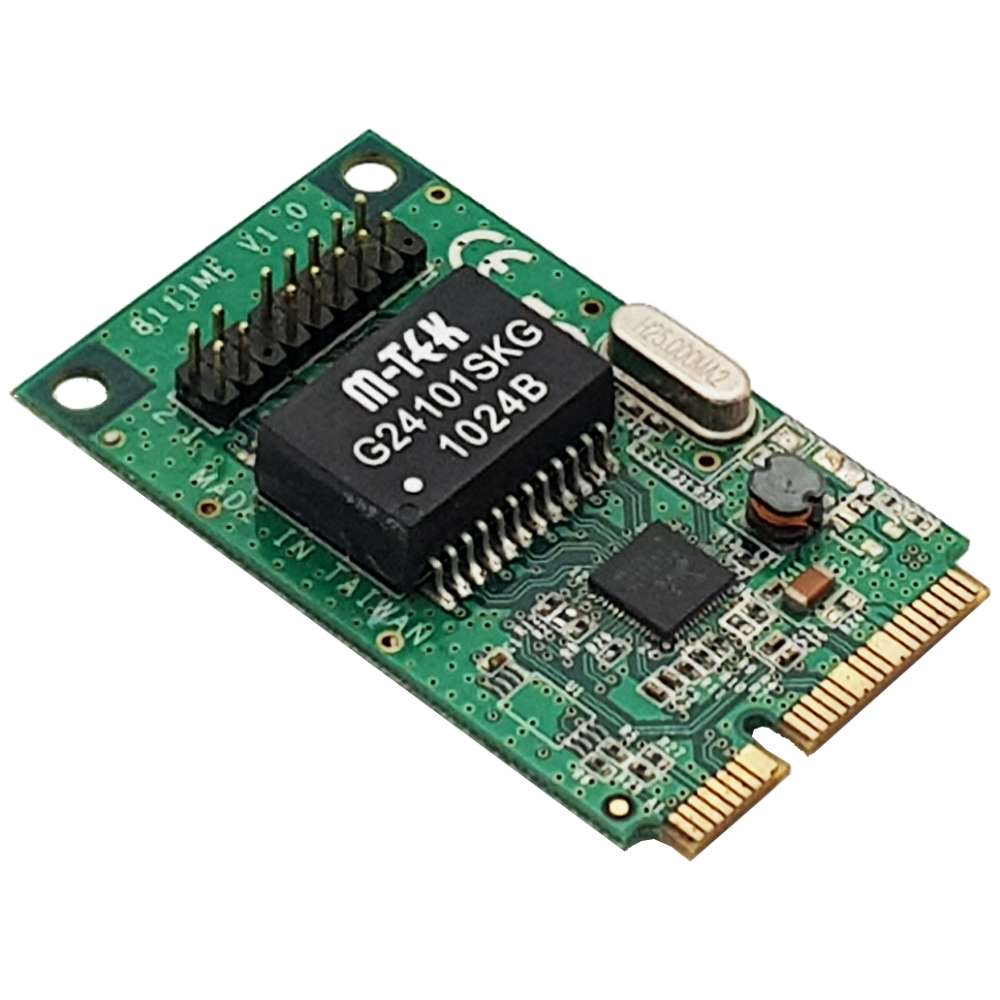

MINIPCIE 1-PORT GIGA LAN CARD

    • SA single 10/100/1000Mbps compatible RJ45 Ethernet port
    • Gigabit detection and Link/Activity LED indicators
    • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards

    APPLICATION

    • Upgrade from 10/100 Ethernet capability to Gigabit capability
    • Add an Ethernet port to a workstation or server computer, for redundancy or bridging
    • Add networking capabilities to an old system with no Ethernet port

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:Mini PCI-eCard Type:EmbeddedChipset ID:REALTEK RTL8111GIndustry Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3abInterface:RJ45 (Gigabit Ethernet)Port Style:Integrated on CardPort Numbers:1

    Auto MDIX:YesCompatible Networks:10/100/1000 MbpsFull Duplex Support:YesJumbo Frame Support:9K max.Maximum Data Transfer Rate:1000 MbpsSupported Protocols:CSMA/CD

    Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleExternal Ports:1-RJ-45

    Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS
