72022ME

72022ME

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out

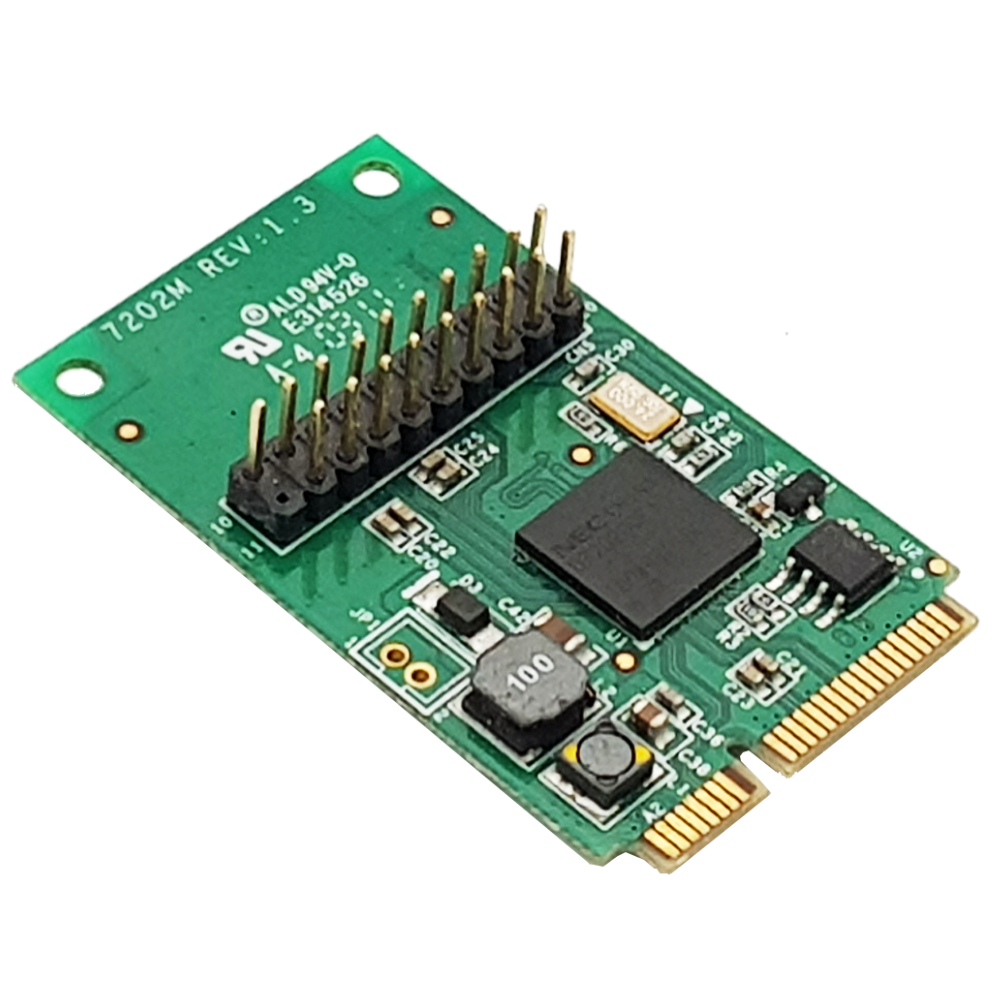

MINIPCIE 2-PORT USB 3.2 GEN 1 CARD

  • Provides two external USB 3.0 ports with UASP support
  • Supports data rates up to 5 Gbps
  • Optional LP4 power connector provides up to 900mA per USB port
  • Supports USB Battery Charging Specification 1.2
  • Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Includes a Low-Profile/half-height installation bracket

APPLICATION

  • Upgrade an older MiniPCIe-based system from USB 2.0 to USB 3.0 connectivity

  • Expand the USB capabilities of your system with two additional external ports Connect additional external hard drives, CD/DVD drives, MP3 players, printers,

  • scanners, webcams, game controllers, digital cameras, etc. to a computer system.

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:Mini PCI-eCard Type:Low Profile (SP bracket incl.)Chipset ID: Renesas/NEC - µPD720202Industry Standards:USB 3.0 Specification Rev. 1.0USB Battery Charging Specification Rev. 1.2PCI Express Base Specification Rev. 2.0Intel xHCI Specification Rev. 1.0Interface:USB 3.2 Gen 1Port Style:Integrated on CardPort Numbers:2
PERFORMANCE
Maximum Data Transfer Rate:5GbpsType and Rate:USB 3.2 Gen 1 - 5 Gbit/sUASP Support:Yes
CONNECTOR(S)
Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleExternal Ports:2-USB 3.2 USB Type-A (9 pin) FemaleInternal Ports:1-LP4 (4 pin; Large Drive Power) Male
System Requirements
Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only
ENVIRONMENTAL
Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)
Certification
CE - FCC - ROHS
