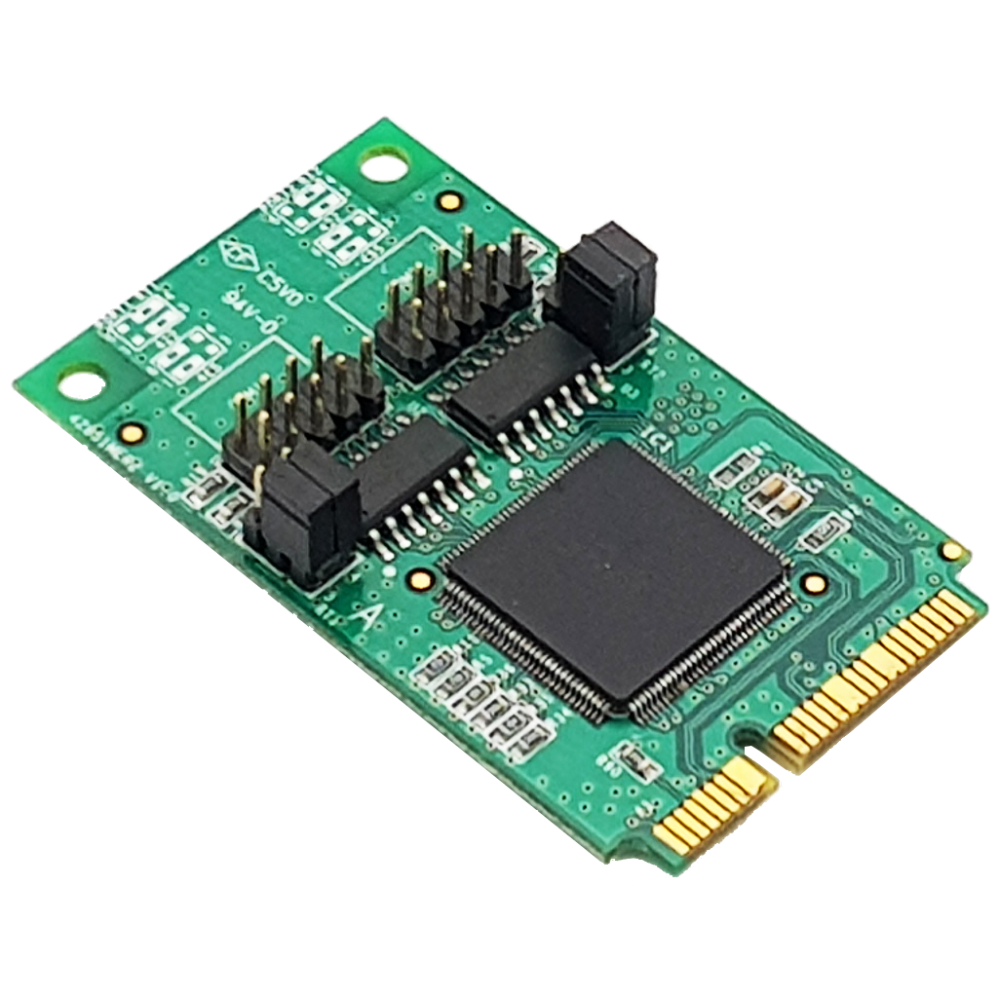

MINI PCI-E 2-PORT RS422/485 CARD

  • Native single chip design
  • On chip 256-byte depth FIFO in transmit/receive path of each port
  • MiniPCI-Express with throughput up to 2.5Gbps
  • Supports RS422 & RS485 modes
  • Bi-directional speeds from 50 bps to 16 Mbps per port
  • Full Serial Modem Control
  • Supports Hardware, Software Flow Control

APPLICATION

  • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)Environmental Control (lighting, temperature, clocks)
  • ntertainment (video lottery terminals, slot machines, gaming systems)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:Mini PCI ExpressCard Type:MiniPCI-eChipset ID: Asix Moschip-MCS9922Interface:SerialPort Numbers: 2

Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:115.2 KbpsFlow Control:Hardware, Auto Xon/Xoff, NoneParity:None, Even, OddSerial Protocol:RS-422/485

Connector Type(s):1-MiniPCI Express MaleExternal Ports::2-DB-9 (9 pin, D-Sub) Male

Windows® 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
