358R8-I

358R8-I

$10.00 USD
$10.00 USD
Sale Sold out

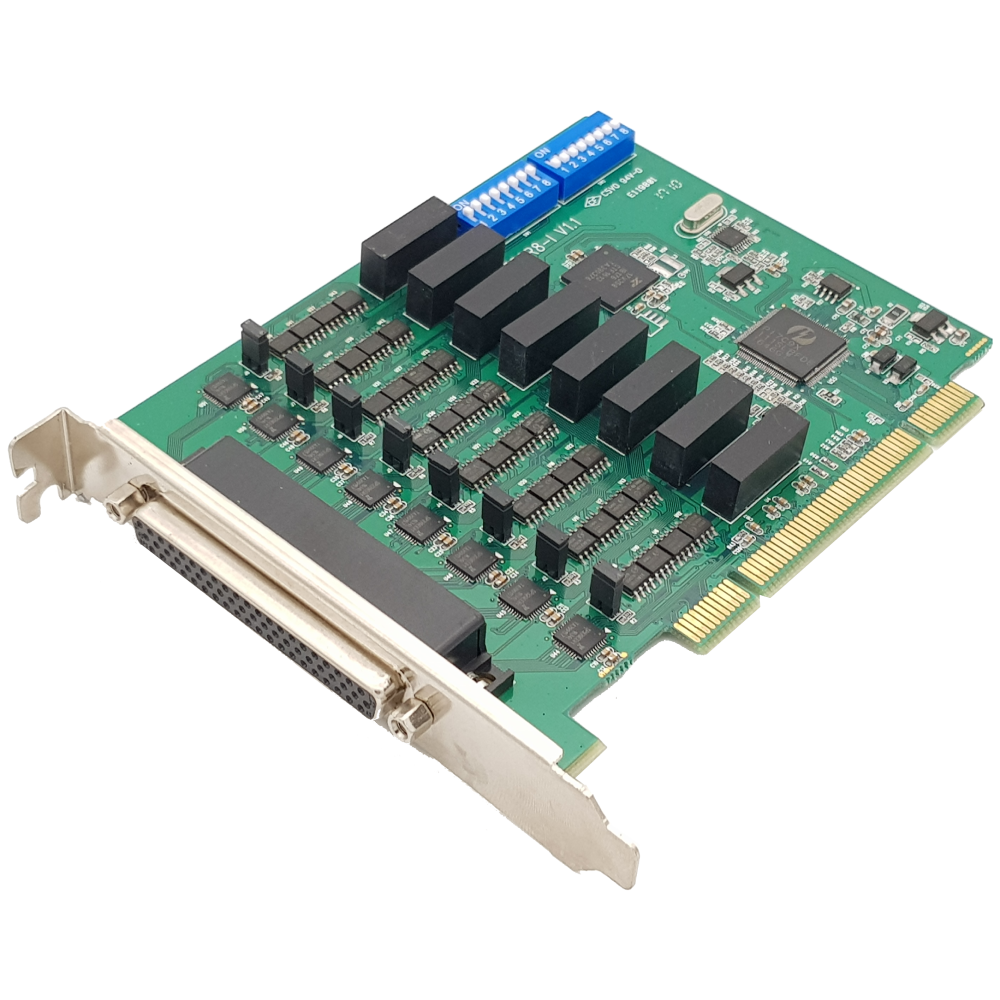

PCI 8-PORT RS232/422/485 ISOLATION

  • Supports RS232, RS422, RS485 2 wire, and RS485 4 wire modes
  • Each port can be set independently
  • Built-in ESD (Electro-Static Discharge) protection
  • 115.2Kbps maximum baud rate per port
  • Compliant with PCI Rev. 2.2 specifications
  • PCI Power Management Rev. 1.1 compliant
  • Switch configuration for mode, echo, and termination setting

APPLICATION

Add RS232, RS422, and RS485 support to a Desktop, Server, or Embedded systemIdeal for lab environments where serial requirements may changeCommunicate with two different serial modes from the same PCI card

TECHNICAL SPECIFICATIONS

Bus Type:PCI / PCI-X (5 / 3.3V)Card Type: Standard ProfileChipset ID: Exar-XR17V358Port Style: Dongle (Included)Interface:SerialPort Numbers: 8

Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:115.2 KbpsFlow Control:Hardware, Auto Xon/Xoff, NoneIsolation:2500 VrmsParity:None, Even, OddSerial Protocol:RS-232/422/485

Connector Type(s): 1-PCI MaleExternal Ports::8-DB-9 (9 pin, D-Sub) Male

Windows®XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
