358ELR8SC

358ELR8SC

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out

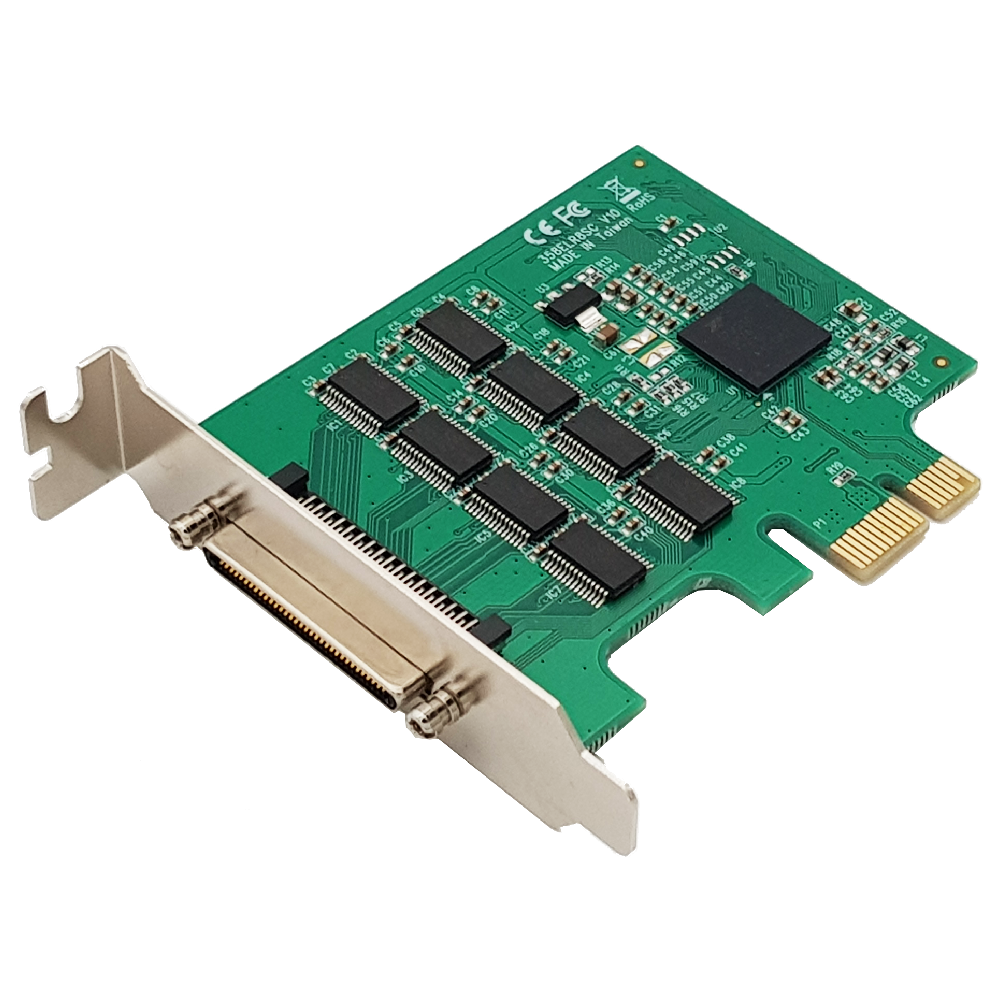

PCI-E 8-PORT RS232 CARD

  • Includes a full profile and low profile/half-height bracket
  • Native single chip design
  • Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
  • Supports hardware and software flow control
  • Compliant with PCI Express base specifications revision 1.0a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR

APPLICATION

  • Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
  • Environmental Control (lighting, temperature, clocks)
  • Entertainment (video lottery terminals, slot machines, gaming systems)
  • Healthcare (patient monitoring equipment, nurses' stations, modems)
  • Security (UPS control, access key panels, video cameras, card readers, modems)
  • Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Consumer (modems, PDAs, digital cameras, printers)ISDN Networking

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type: PCI Express 1.1 compliantCard Type: Low Profile (SP bracket incl.)Chipset ID: Exar-XR17V358Port Style:Dongle (Included)Interface:SerialPort Numbers: 8

PERFORMANCE
Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:921.6 KbpsParity:Even, Odd, None, Space and MarkSerial Protocol:RS-232

Connector Type(s): 1 - PCI Express x1 MaleExternal Ports::8-DB-9 (9 pin, D-Sub) Male

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

ENVIRONMENTAL
Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
