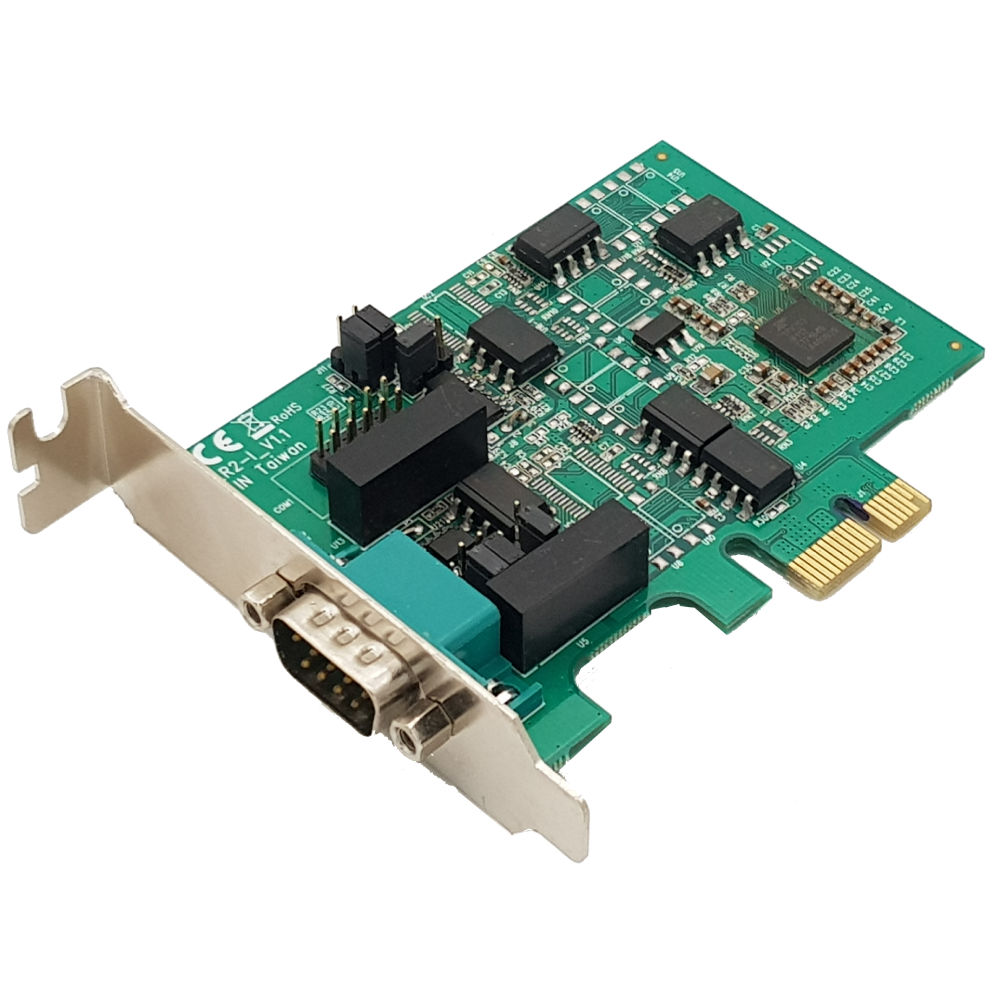

352ELR2-I

352ELR2-I

$10.00 USD
$10.00 USD
Sale Sold out

PCI-E 2-PORT RS232/422/485 ISOLATION

    • Includes a full profile and low profile/half-height bracket
    • Native single chip design
    • Supports RS232, RS422, RS485 2 wire, and RS485 4 wire modes
    • Each port can be set independently
    • Built-in ESD (Electro-Static Discharge) protection
    • 115.2Kbps maximum baud rate per port

    APPLICATION

    Add RS232, RS422, and RS485 support to a Desktop, Server, or Embedded systemIdeal for lab environments where serial requirements may changeCommunicate with two different serial modes from the same PCI card.

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type: PCI Express Rev.2.2 compliantCard Type: Low Profile (SP bracket incl.)Chipset ID: Exar-XR17V352Port Style:Integrated on CardInterface:SerialPort Numbers: 2

    Data Bits: 5, 6, 7, 8FIFO:256 BytesMax Baud Rate:115.2 KbpsFlow Control:Hardware, Auto Xon/Xoff, NoneIsolation:2500 VrmsParity:None, Even, OddSerial Protocol:RS-232/422/485

    Connector Type(s): 1 - PCI Express x1 MaleExternal Ports::2-DB-9 (9 pin, D-Sub) Male

    Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS

    DIMENSION
