3242EL

3242EL

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out

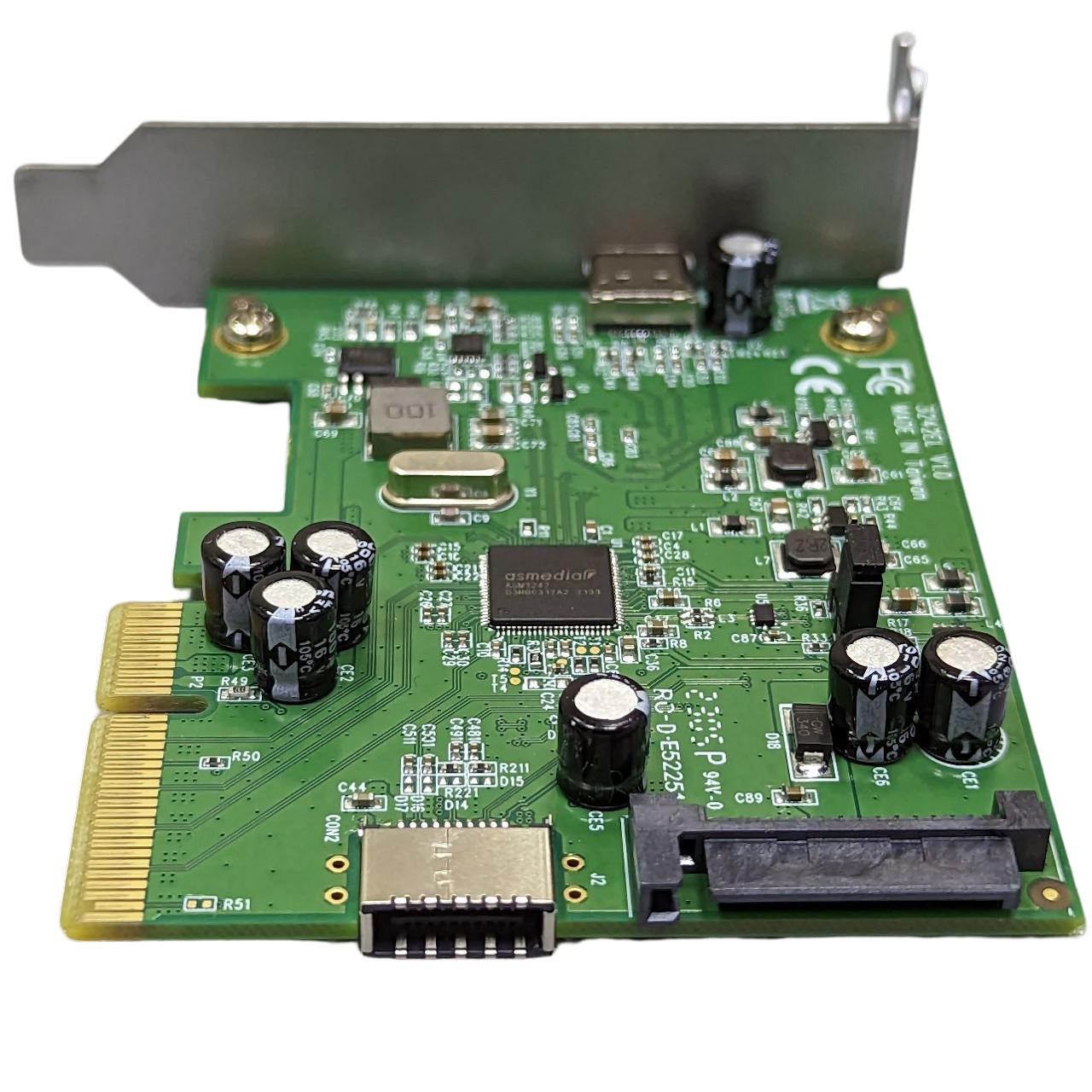

PCI-E 1-PORT USB3.2 GEN 2X2 TYPE C OR TYPE E CARD

APPLICATION

  • Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.2 Gen 2x2 (20Gbps)
  • Expand the USB capabilities of your system with additional USB ports, or install the card as a vital hardware component when building a new PC
  • Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.2 Gen 2x2 external storage

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI Express X4Card Type:Low Profile (SP bracket incl.)Chipset ID:ASMedia -ASM3242Industry Standards:USB 3.2  gen2x2 Specification USB Specification Rev. 2.0PCI Express Base Specification Rev. 3.0Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0Interface:USB 3.2 Gen 2x2Port Style:Integrated on CardPort Numbers:1

Maximum Data Transfer Rate:20GbpsType and Rate:USB 3.2 Gen 2x2 - 20 Gbit/sUASP Support:Yes

Connector Type(s):1-PCI Express x4 MaleExternal Ports:Female,1-USB 3.2 GEN 2x2  Type-C (24 pin) FemaleInternal Ports:1-SATA Power (15 pin) Plug , 1-USB 3.2 GEN2x2 Type-E

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10,11Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
