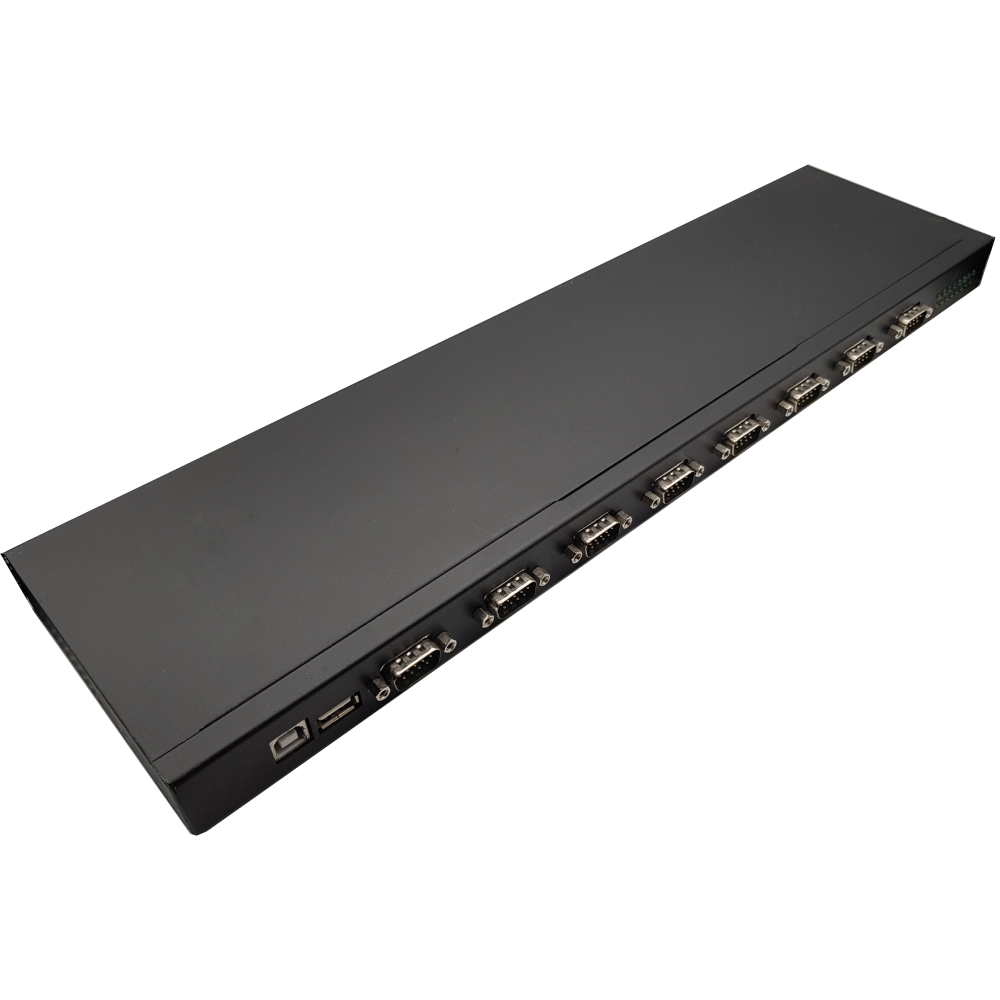

232R8 PLUS

232R8 PLUS

$20.00 USD
$20.00 USD
Sale Sold out

USB TO 8-PORT RS232 HUB

  • Gain 8 RS232 serial port interfaces through a single USB port
  • Connect multiple hubs together through daisy chain functionality
  • 921.6Kbps baud per port
  • 256-byte transmit, 128-byte receive FIFO
  • Rack-mountable design
  • COM port retention
  • Durable all-metal chassis
  • Low USB bandwidth consumption
  • USB 2.0 compatible
  • Fully integrated USB termination resistor
  • Device supplied pre-programmed with unique USB serial number

APPLICATION

  • Ideal for industrial automation on factory and manufacturing floors
  • Provides full control of your server room serial components from a single device
  • Control and monitoring of surveillance and security cameras and systems

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:USB 2.0Chipset ID:FTDI - FT232RLInterface:SerialPort Style:External HubPort Numbers:8

    Data Bits:7, 8FIFO:256 BytesMax Baud Rate:921.6 KbpsMaximum Data Transfer Rate: 480 MbpsParity:Odd, Even, Mark, Space, NoneSerial Protocol:RS-232Stop Bits:1, 2

    Connector Type(s):1-USB B (4 pin) Female8-DB-9 (9 pin, D-Sub) Male1-USB A(Connect to another device)

    Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS
