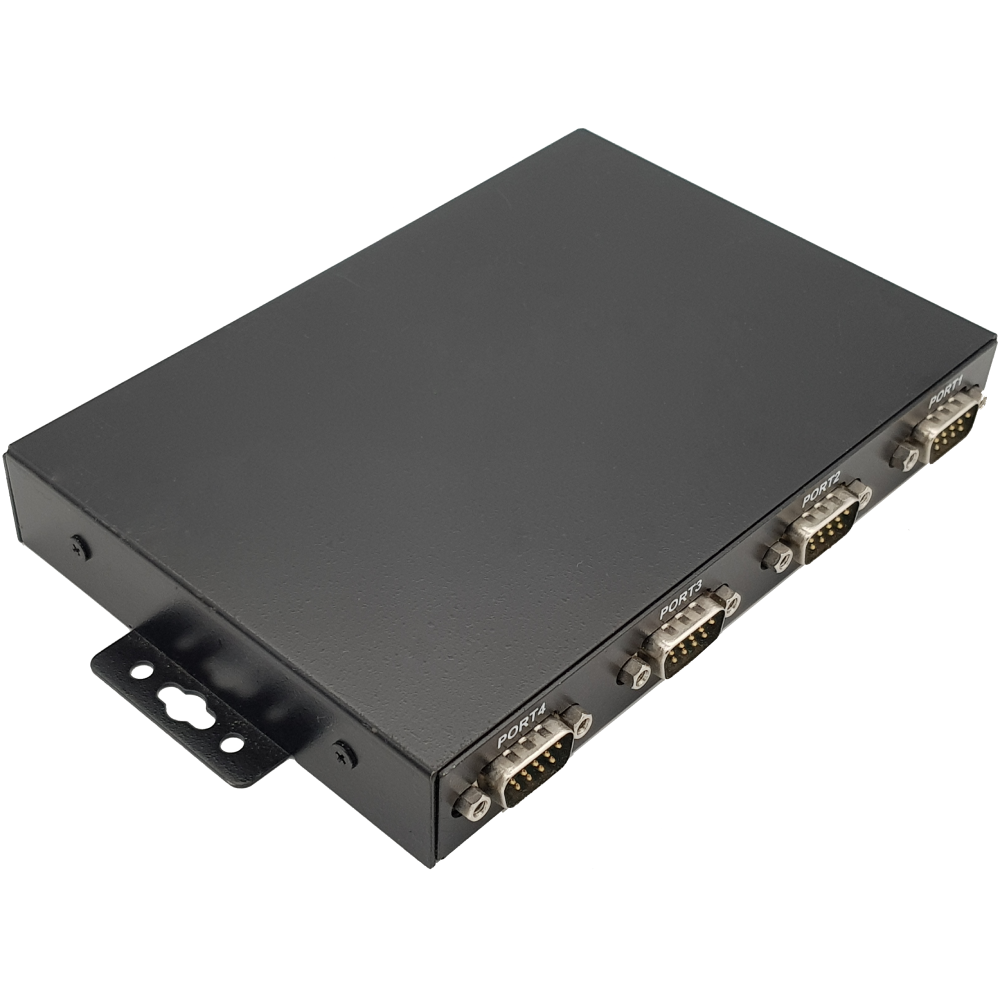

232R4I-COMBO

232R4I-COMBO

$20.00 USD
$20.00 USD
Sale Sold out

USB TO 4-PORT RS232/422/485(OPTIONAL) HUB

  • 4-port USB to RS232/422/485 serial adapter
  • Rugged metal construction
  • Wall-mountable
  • COM Port assignments maintained across reboot
  • Optional DC jack or terminal block DC 9~36V power connections
  • Powered by an available USB port - no external power adapter required
  • Designed to make serial port expansion quick and simple
  • Provides dual buffers for upstream and downstream data transfer
  • Supports automatic handshake mode
  • Enables and disables enumerations

APPLICATION

  • Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:USB 2.0Chipset ID:FTDI - FT232RLInterface:SerialPort Style:External HubPort Numbers:4

FIFO:32 BytesMax Baud Rate:921.6 KbpsSerial Protocol:RS-232/422/485

Connector Type(s):1-USB B (4 pin) FemaleExternal Ports:4-DB-9 (9 pin, D-Sub) Male

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
