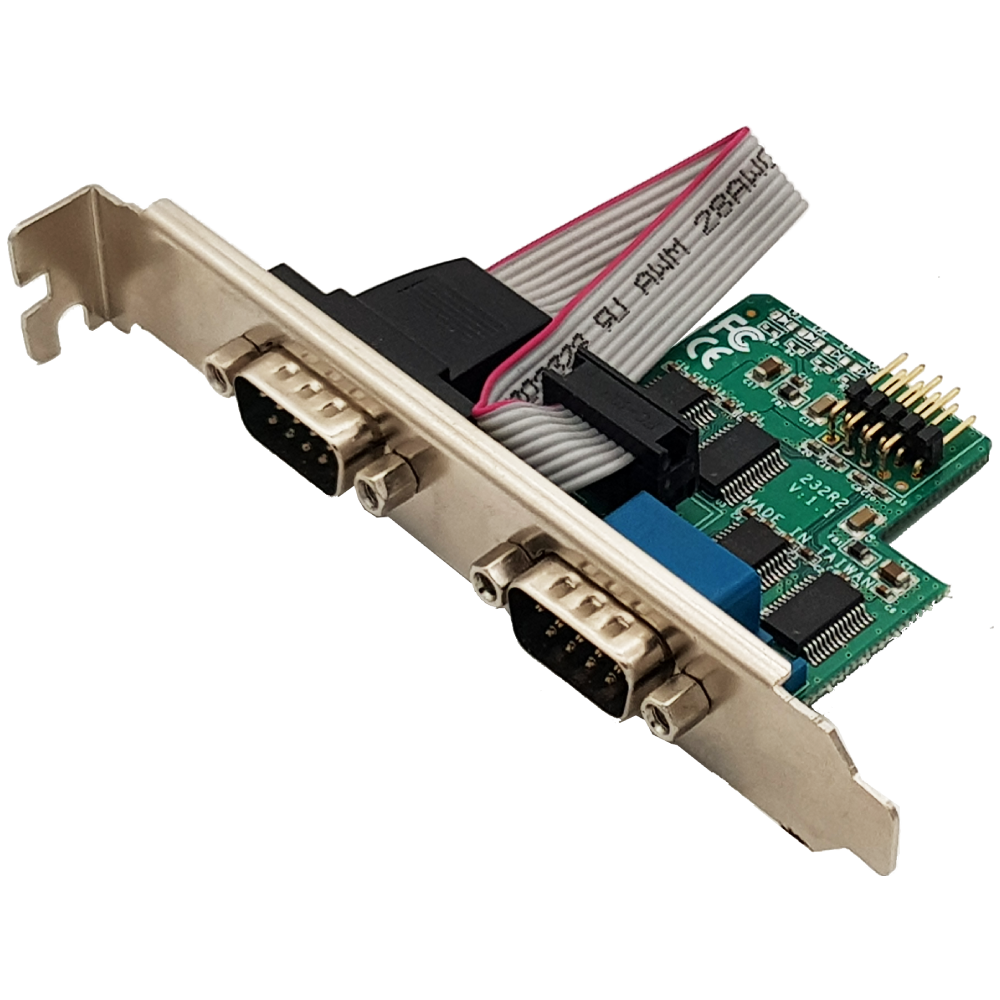

232R2

232R2

$20.00 USD
$20.00 USD
Sale Sold out

MONTHERBOARD USB HEADER TO
1-PORT RS232 SERIAL

  • USB Header to Straight-Through RS232 Serial
  • Bus-Powered – no separate power supply or battery required
  • Supports COM port retention'
  • Single chip USB to asynchronous serial data transfer interface
  • UHCI/OHCI/EHCI host controller compatible
  • USB 2.0 Full Speed compatible
  • Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
  • FIFO receive and transmit buffers for high data throughput.

APPLICATION

  • Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:Motherboard USB HeaderCard Type:Standard Profile (LP bracket incl.)Chipset ID:FTDI - FT232RLInterface:SerialPort Style:Integrated on CardPort Numbers:2

Data Bits:7, 8FIFO:256 BytesMax Baud Rate:115.2 KbpsParity:None, Odd, Even, Space, MarkSerial Protocol:RS-232Stop Bits:1, 2

External Ports:2-DB-9 (9 pin, D-Sub) MaleInternal Ports:1-IDC (10 pin, Motherboard Header) Female

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only
ENVIRONMENTAL
Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
