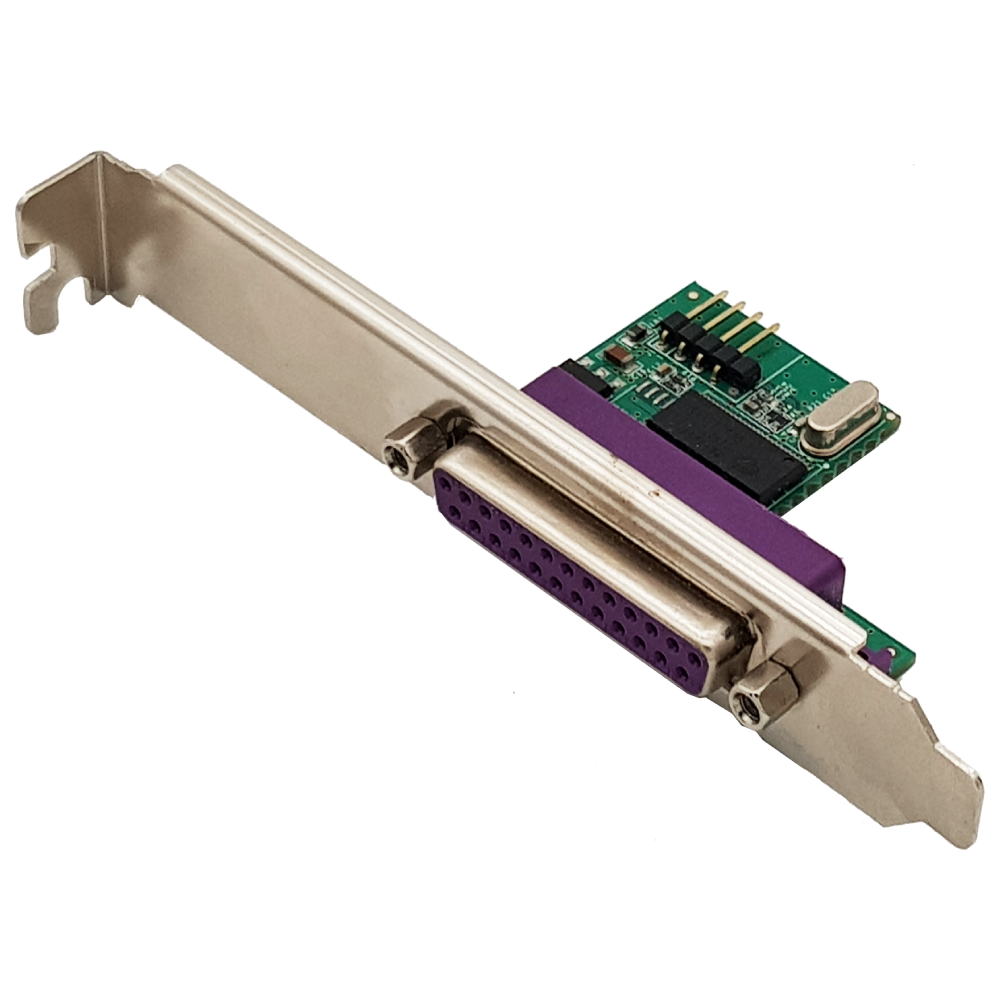

MONTHERBOARD USB HEADER TO
1-PORT PARALLEL

  • High speed bi-directional parallel port compliant to IEEE-1284 industry standard
  • Low power consumption as it draws power from the USB connection
  • Fully Plug & Play for easy installation
  • No IRQ required for installation

APPLICATION

  • Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:Motherboard USB HeaderCard Type:Standard Profile (LP bracket incl.)Chipset ID:Prolific - PL2305Interface:ParallelPort Style:Integrated on CardPort Numbers:1

Maximum Data Transfer Rate:1.5Mbps

External Ports:1-DB-25 (25 pin, D-Sub) FemaleInternal Ports:1-IDC (4 pin, Motherboard Header) Female

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
