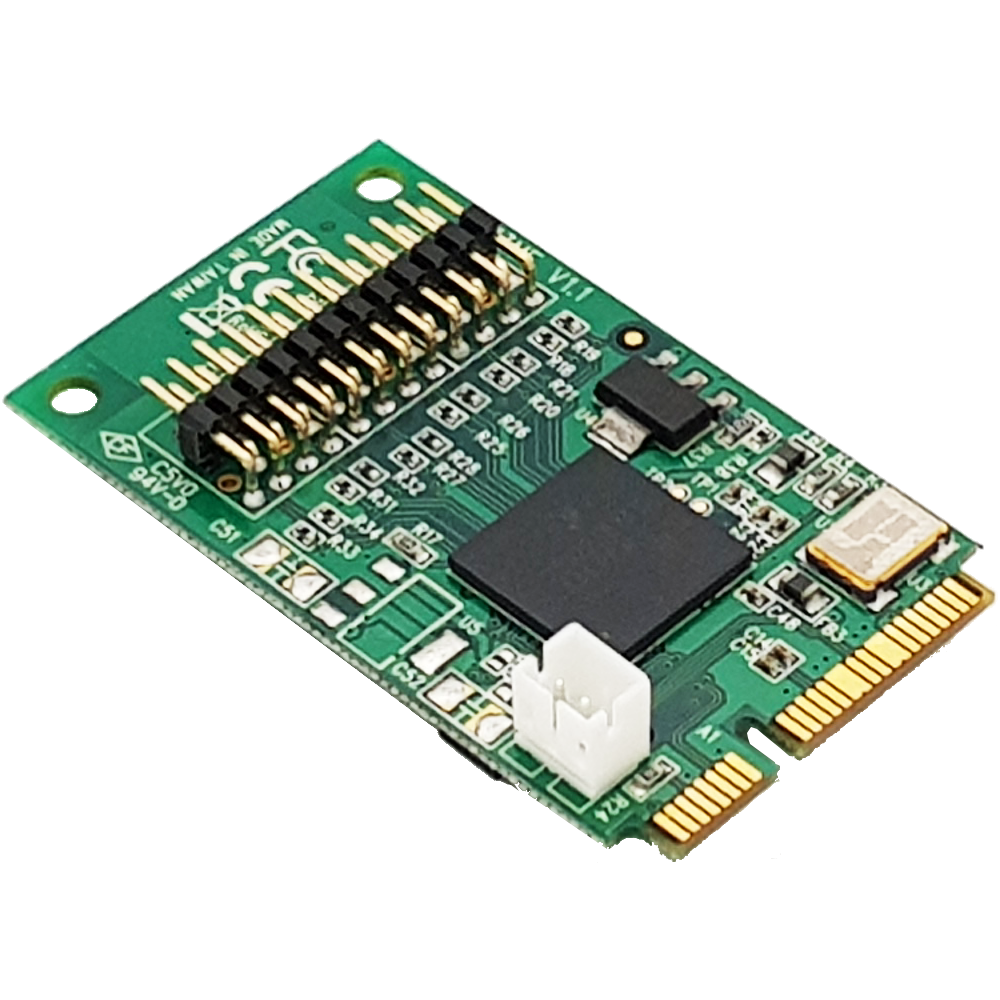

MINIPCIE 2-PORT 1394B & 1-PORT 1394A CARD

  • Add 1394 ports to your computer, through a MiniPCI Express slot
  • Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
  • One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
  • Built with a native PCI Express chipset, no bridge chip
  • Includes low profile/half-height installation bracket
  • Internal power connector for high powered FireWire devices
  • Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
  • Plug-and-Play and hot-swap compatible

APPLICATION

  • Add a high speed FireWire port to a motherboard or NB without any FireWire ports
  • Connect a digital camera to a desktop with a MiniPCI-e slot to download photos and video
  • Connect a high-speed external hard drive to a MiniPCI Express-enabled system

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:Mini PCI-eCard Type:EmbeddedChipset ID:Texas Instruments - XIO2213BIndustry Standards:IEEE-1394/1394A/1394BOHCIPCI Express 1.1Interface:FireWire 800 (1394b), FireWire 400 (1394a)Port Style:Integrated on CardPort Numbers:3

    Maximum Data Transfer Rate 800 Mbps400 Mbps

    Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleExternal Ports:1-FireWire 400 (6 pin, IEEE 1394a) Female2-FireWire 800 (9 pin, IEEE 1394b) FemaleInternal Ports:1-IDC Power (2 pin) Plug

    Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS
