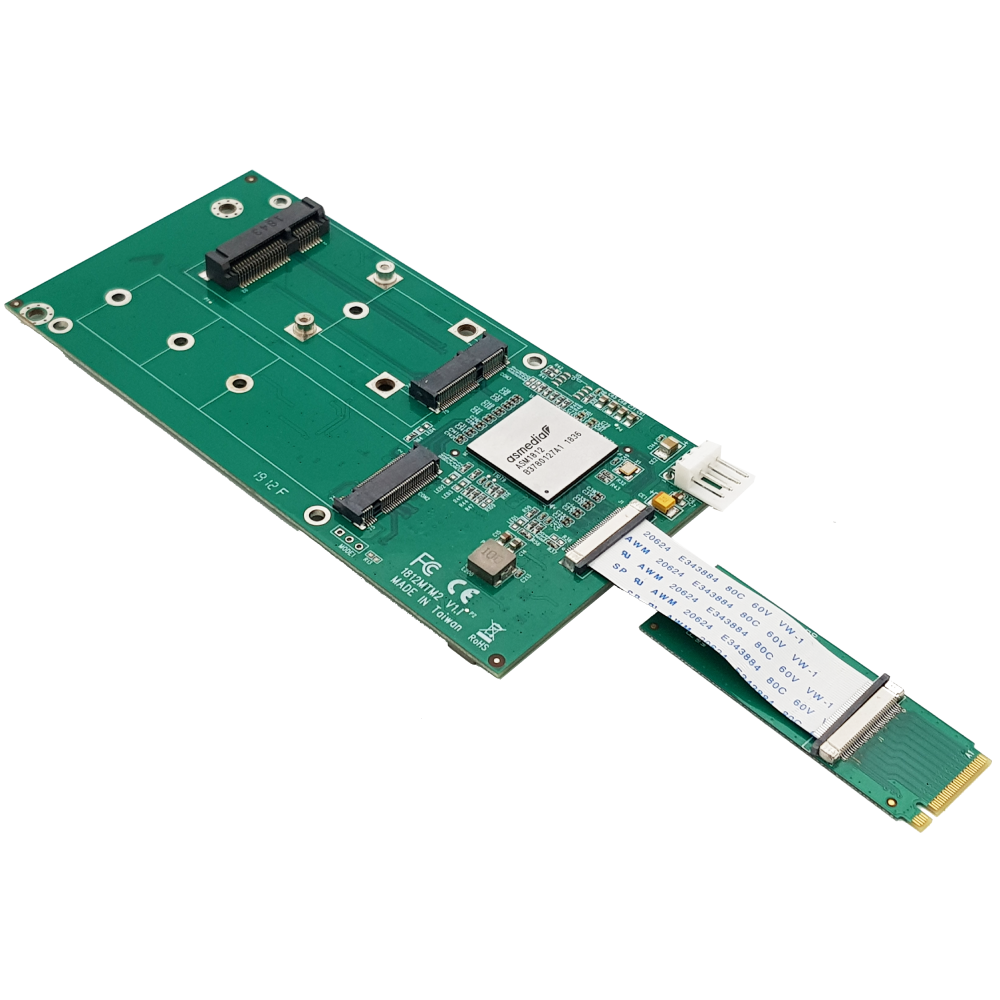

M.2 (NGFF) M KEY TO M KEY (PCI-E & SATA) AND E KEY(PCI-E)/MINIPCI-E

  • Support 2230 M.2 E key Card dimension.

  • Support 2280 M.2 M key Card dimension.

  • Support M.2 M Key Card Type SSD(NVMe & AHCI) &SATA

  • Support M.2 E Key Card Type (PCI-e)

  • Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac

  • No drivers needed for this mini PCI-E to M.2 Card Adapter

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:m.2 M keyCard Type: ASMEDIA ASM1812Interface: MiniPCI-e(PCIe only)M.2 M key(PCI-e & SATA) 2280M.2 E key(PCIe only) 2230Port Numbers: 2

Connector Type(s):M.2(NGFF)M keyInternal Ports:1-Mini PCI Express x1 (52 pin) Slot Female1-M.2 E Key1.-M.2 M Key4-Pin Mini Power Connector

OS Independent; No additional drivers or software required

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
