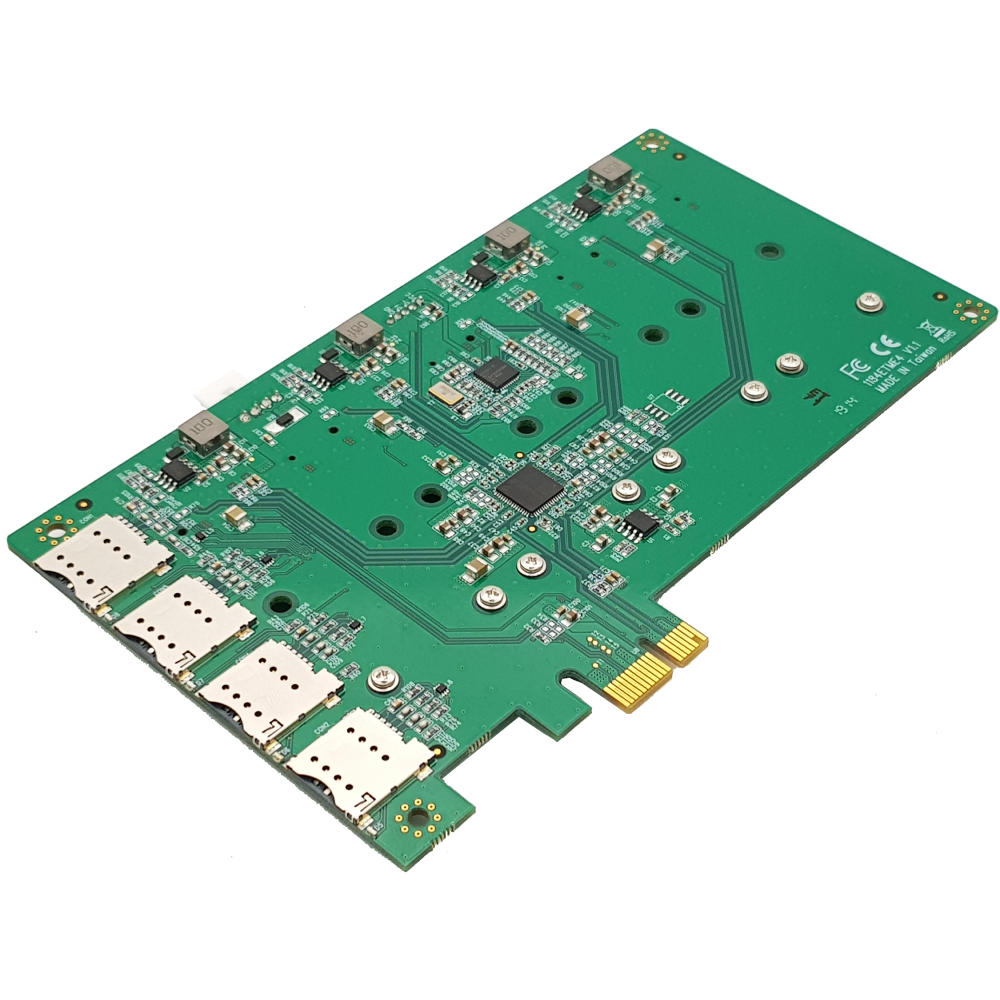

PCI EXPRESS TO 4 MINIPCI-E ADAPTER

  • The adapter includes 4 Micro-SIM card holders, as well as a voltage supply 3.3 V for plugged PCI Express Mini cards.
  • LP4 Power Connector Included for MiniPCIe Cards (3.3V)
  • No driver or software installation
  • PC plug-in card (PCIe x1) for the PCI Express slot
  • Suitable for operation of USB solutions and add-in cards for wireless communication:
  1. WWAN (Wireless Wide Area Network, e.g. UMTS & GSM)
  2. WLAN (Wireless Local Area Network)
  3. WPAN (Wireless Personal Area Network, e.g. Bluetooth)
  • Suitable for operation of PCI-e Base MiniPCI-e solutions and add-in cards
  • Status LEDs for power supply and state of communication add-in cards
  • USB 5 pin header for operation of USB solutions
  • Micro-SIM card holder for operation of UMTS and GSM cards

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI ExpressCard Type: Standard ProfileChipset ID:ASMEDIA ASM1184eInterface: Mini PCI-ePort Numbers: 4

Connector Type(s):1-PCI Express x1 MaleInternal Ports:1-LP4 (4 pin Power) Male4-Mini PCI Express x1 (52 pin) Slot Female4-Sim Card Holder

OS Independent; No additional drivers or software required

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
