1142ME

1142ME

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

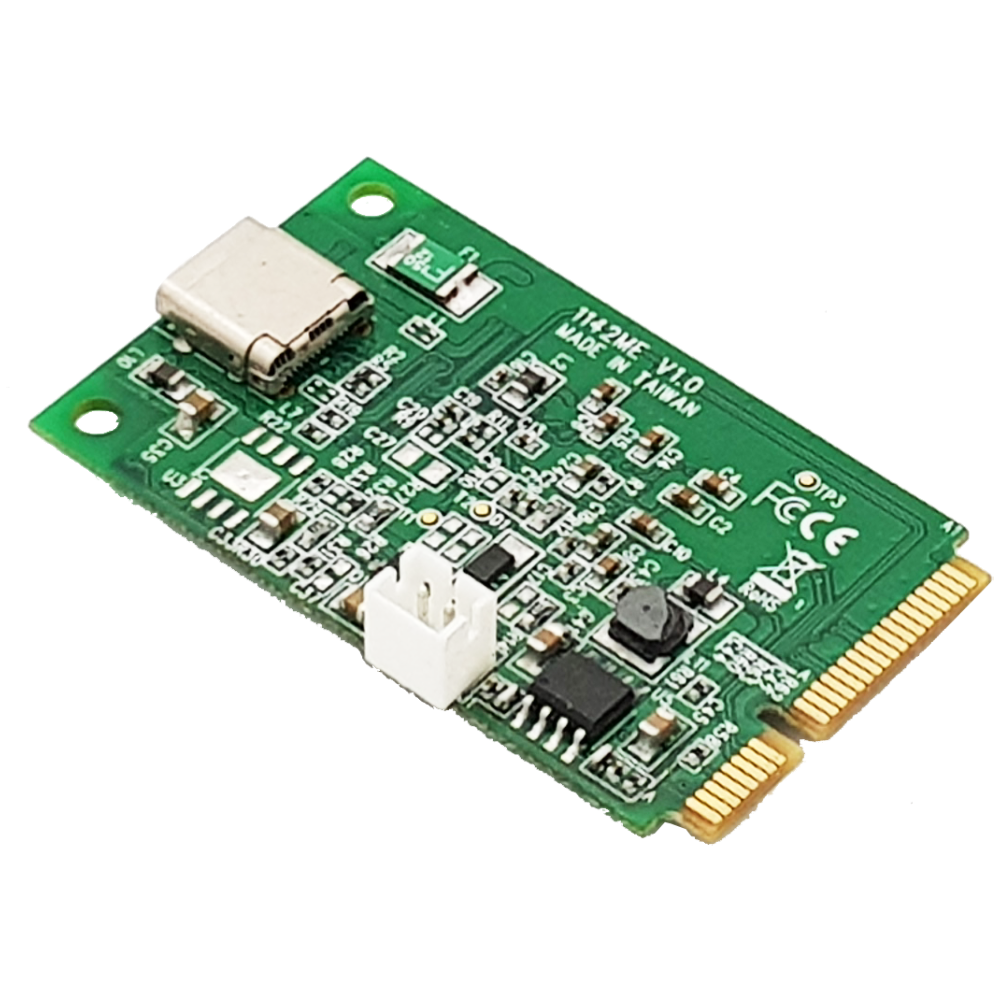

MINIPCIE 1-PORT USB 3.2 TYPE C
GEN 1 CARD

  • Add 5Gbps USB ports to your computer, through a MiniPCI Express slot
  • Optional power connector provides up to 900mA per USB port
  • Cost-effective backward compatibility
  • Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0

APPLICATION

  • Upgrade an older MiniPCI-e equipped desktop from USB 2.0 to USB 3.2 Gen 1 (5Gbps)
  • Expand the USB capabilities of your system with additional USB ports, or install the card as a vital hardware component when building a new PC
  • Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.2 Gen 1 external storage solutions

TECHNICAL SPECIFICATIONS

HARDWARE

Bus Type:MiniPCI-eCard Type:EmbeddedChipset ID:ASMedia -ASM1142Industry Standards:PCI Express Base Specification, Revision 1.1Interface:USB 3.2 Gen 1 Port Style:Integrated on CardPort Numbers:1

Maximum Data Transfer Rate:2.5GbpsType and Rate:USB 3.2 Gen 1 5 Gbit/sUASP Support:Yes

Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleExternal Ports:1-USB 3.2 Type-C (24 pin) FemaleInternal Ports:1-IDC Power (2 pin) Plug

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC -  ROHS
