1124EL-2A

1124EL-2A

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out

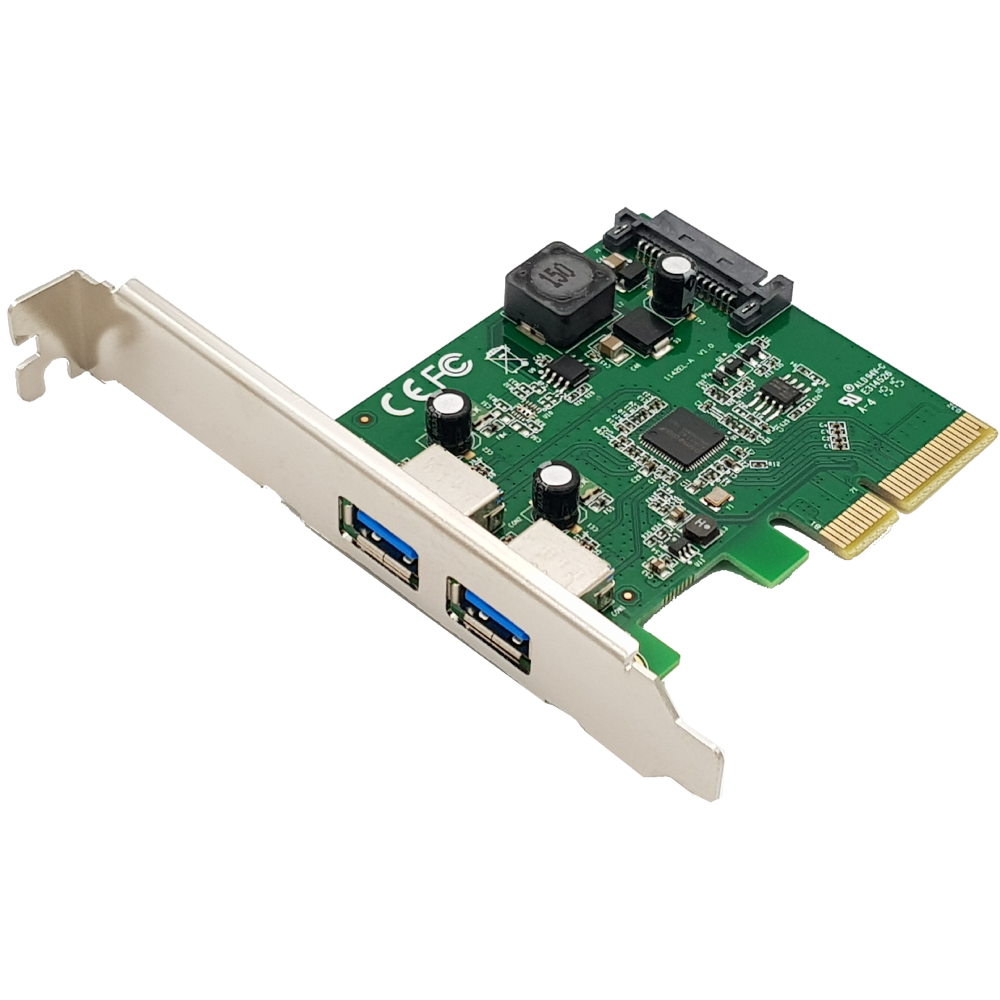

PCI-E 2-PORT USB3.2 GEN1 CARD

  • Add two 5Gbps USB ports to your computer, through a PCI Express slot
  • Optional SATA power connector provides up to 900mA per USB port
  • Cost-effective backward compatibility
  • PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
  • Fits into standard or low-profile systems with a dual-profile design
  • Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0
  • Compliant with Universal Serial Bus 3.2 Specification Revision 1.0, and Universal Serial Bus Specification

APPLICATION

  • Upgrade an older PCIe equipped desktop from USB 2.0 to USB 3.2 Gen 1 (5Gbps)
  • Expand the USB capabilities of your system with additional USB ports, or install the card as a vital hardware component when building a new PC
  • Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.2 Gen 1 external storage solutions

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI Express X4Card Type:Low Profile (SP bracket incl.)Chipset ID:ASMedia -ASM3142Industry Standards:USB 3.2 Specification USB Specification Rev. 2.0PCI Express Base Specification Rev. 3.0Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0Interface:USB 3.2 Gen 1Port Style:Integrated on CardPort Numbers:2

Maximum Data Transfer Rate:10GbpsType and Rate:USB 3.1 Gen 2 - 5 Gbit/sUASP Support:Yes

Connector Type(s):1-PCI Express x4 MaleExternal Ports:1-USB 3.2 USB Type-A (9 pin) FemaleInternal Ports:1-SATA Power (15 pin) Plug

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)
Certification
CE - FCC - ROHS
