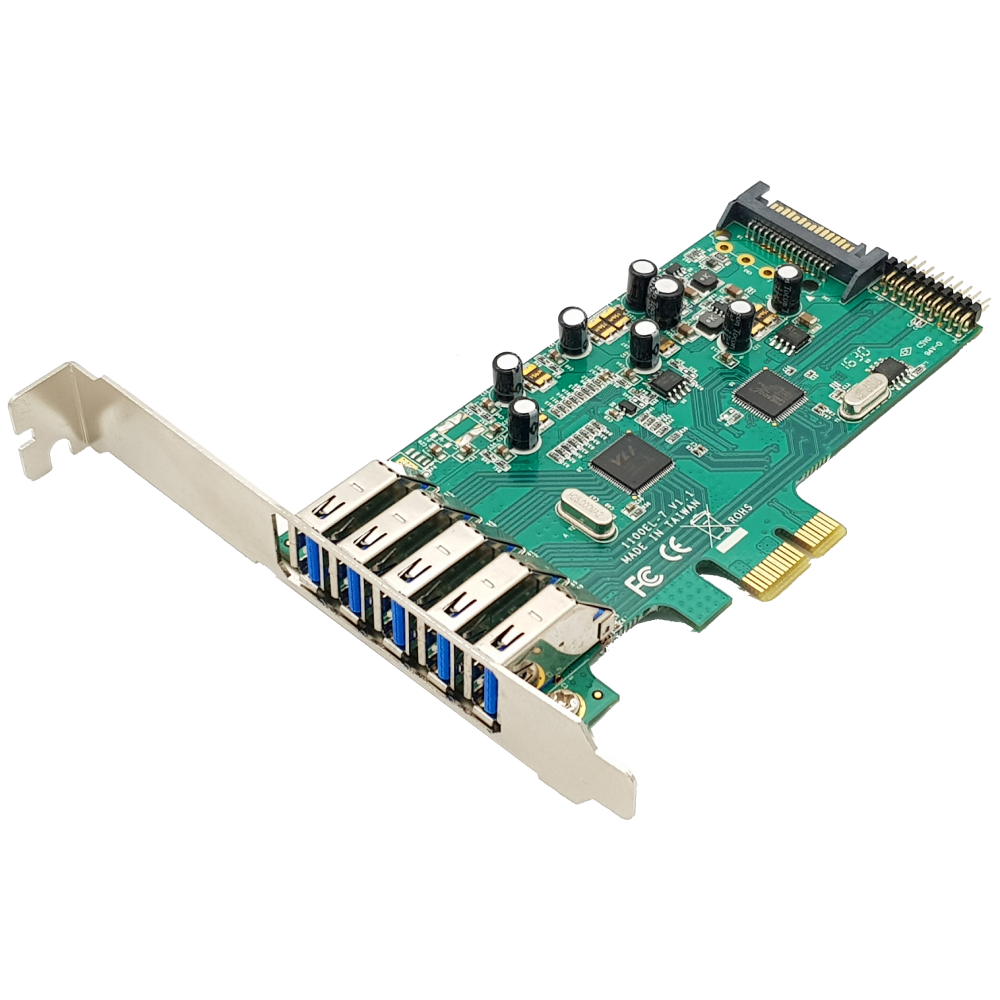

PCI-E 7-PORT USB3.2 GEN1 CARD

  • Provides seven external USB 3.0 ports with UASP support
  • Supports data rates up to 5 Gbps
  • Compliant with PCI Express 2.0 specifications
  • Optional SATA power connector provides up to 900mA per USB port
  • Supports USB Battery Charging Specification 1.2
  • Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Includes a Low-Profile/half-height installation bracket

APPLICATION

  • Upgrade an older PCIe-based system from USB 2.0 to USB 3.0 connectivity
  • Expand the USB capabilities of your system with two additional external ports
  • Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:PCI Express X1Card Type:Low Profile (SP bracket incl.)Chipset ID:Fresco-FL1100LXIndustry Standards:USB 3.0 Specification Rev. 1.0USB Battery Charging Specification Rev. 1.2PCI Express Base Specification Rev. 2.0Intel xHCI Specification Rev. 1.0Interface:USB 3.2 Gen 1Port Style:Integrated on Card & Dongle (Included)Port Numbers:7

Maximum Data Transfer Rate:5GbpsType and Rate:USB 3.2 Gen 1 - 5 Gbit/sUASP Support:Yes

Connector Type(s):1-PCI Express x1 MaleExternal Ports:7-USB 3.2 USB Type-A (9 pin) FemaleInternal Ports:1-SATA Power (15 pin) Plug

Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS

DIMENSION
