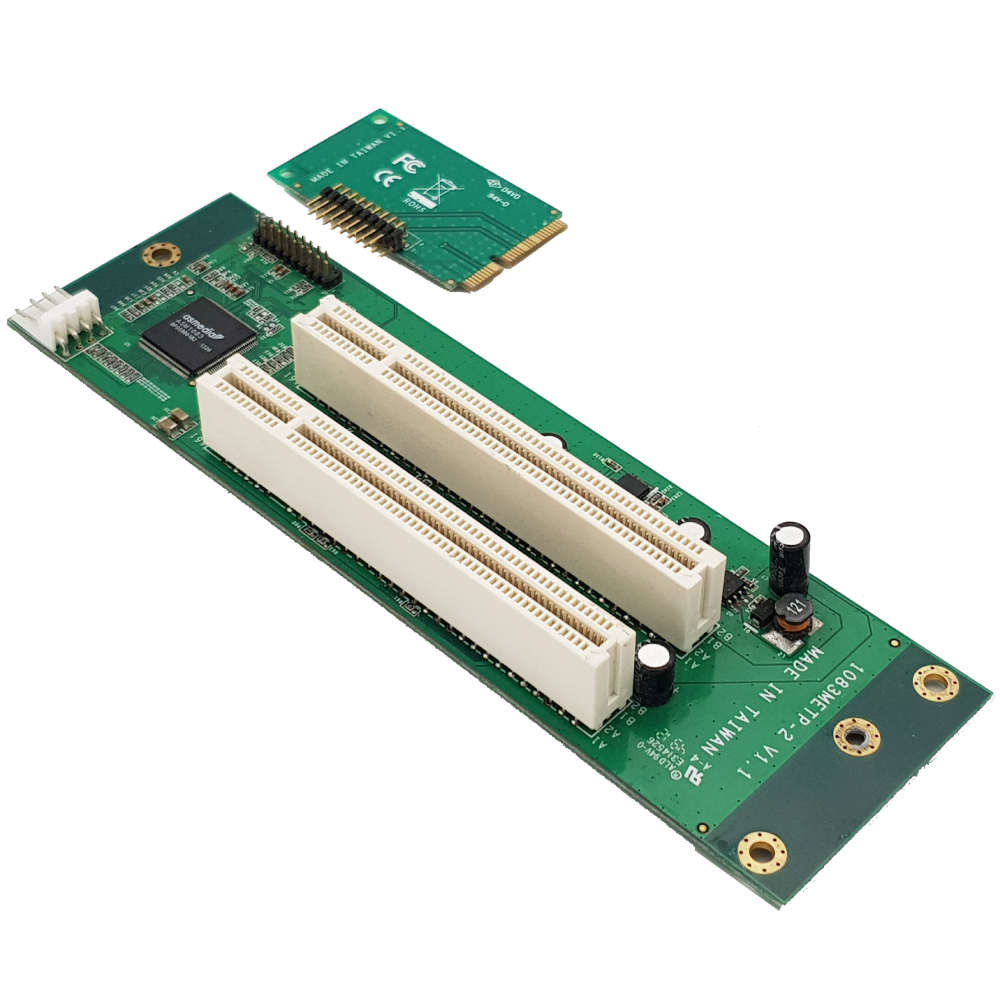

MINI PCI-E TO PCI 2-PORT PCI SLOT RISER CARD

  • Support PCI bus 33 MHz,3 PCI masters,CLKRUN support
  • Fully compliant with PCI-SIG PCI Express-to-PCI Bridge Specification1.0.
  • PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth
  • LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:Mini PCI ExpressCard Type: Mini PCI-eChipset ID: ASMEDIA ASM1083Interface: PCI / PCI-X (5 / 3.3V)Port Numbers: 2

    Connector Type(s):Mini PCI-eInternal Ports:1-LP4 (4 pin; Small Drive Power) Male2-PCI (5V, 32-bit) Slot Female

    OS Independent; No additional drivers or software required

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

    CE - FCC - ROHS
