1064M2S4

1064M2S4

$15.00 USD
$15.00 USD
Sale Sold out

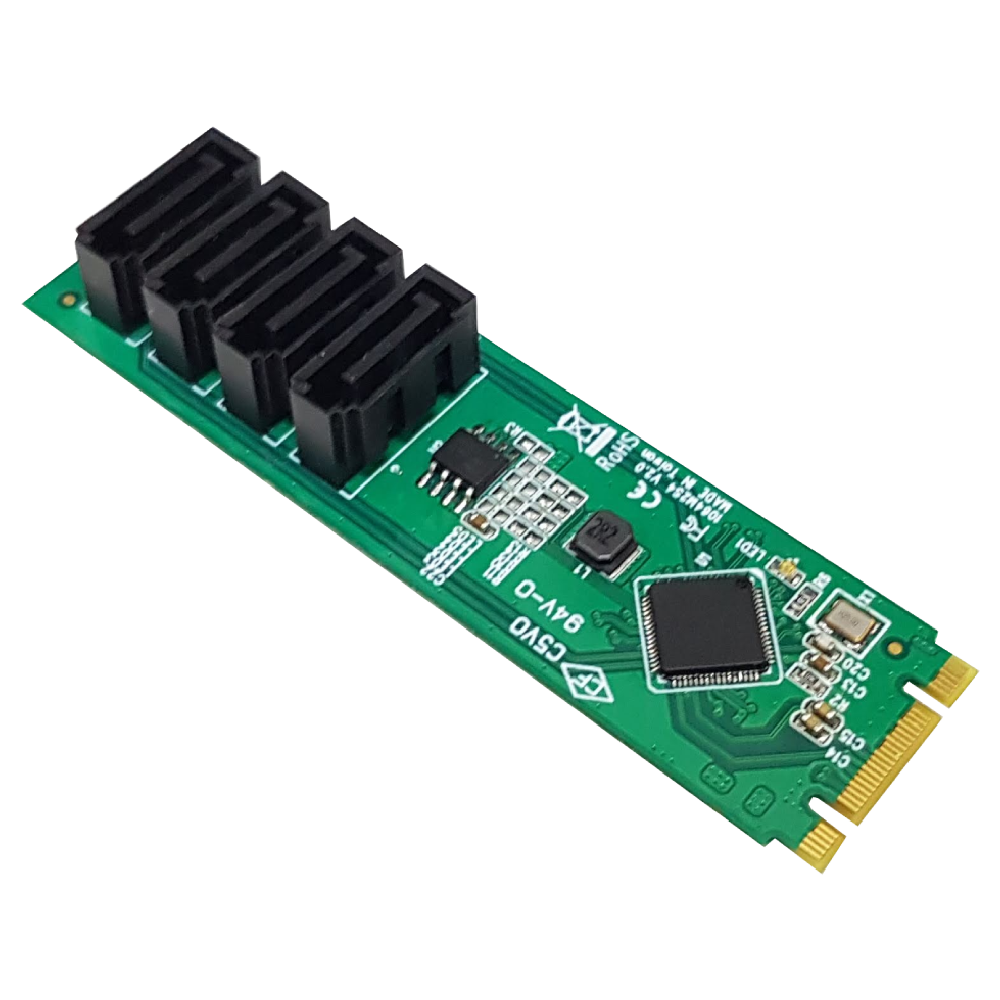

M.2 B+M KEY 4-PORT SATA III

  • Connect four SATA drives to a M.2 B+M key Connection, providing up to 1700 MB/s Speed.

  • Plug and play supported, No additional software installation or setting required.

  • Can support port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives & Solid state drives and computer systems with SATA controllers.

  • 2-Lane M.2 PCI-Express 3.0 interface (B & M Key). complies with PCI Express base Specification Revision 3.1a.

  • This card is only design for storage Use only, can not Boot any OS/ system drives.

APPLICATION

  • Add more internal SATA ports to a computer system, to connect additional storage drives and/or optical drivesUpgrade an m.2-based system to SATA 6Gbps capability, to better utilize faster SATA drives

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:M.2 b+M KeyCard Type:M.2 2280Chipset ID: ASMedia ASM1064Interface:SATA IIIPort Numbers: 4

Type and Rate:SATA III (6 Gbps)Port Multiplier:YesNumber of Ports That Support Port Multiplier:4 (can only use 1 PM at a time)Number of Drives Supported Through Port Multiplier:1 to 4LBA support:48-bitATAPI Support:YesMax Drive Capacity:Currently tested up to 4TB per driveHot Swap Capability:Yes

Connector Type(s):1 m.2 B+M Key External Ports::SATA (7 pin, Data)

Windows® 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only
ENVIRONMENTAL
Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
