1061ME

1061ME

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out

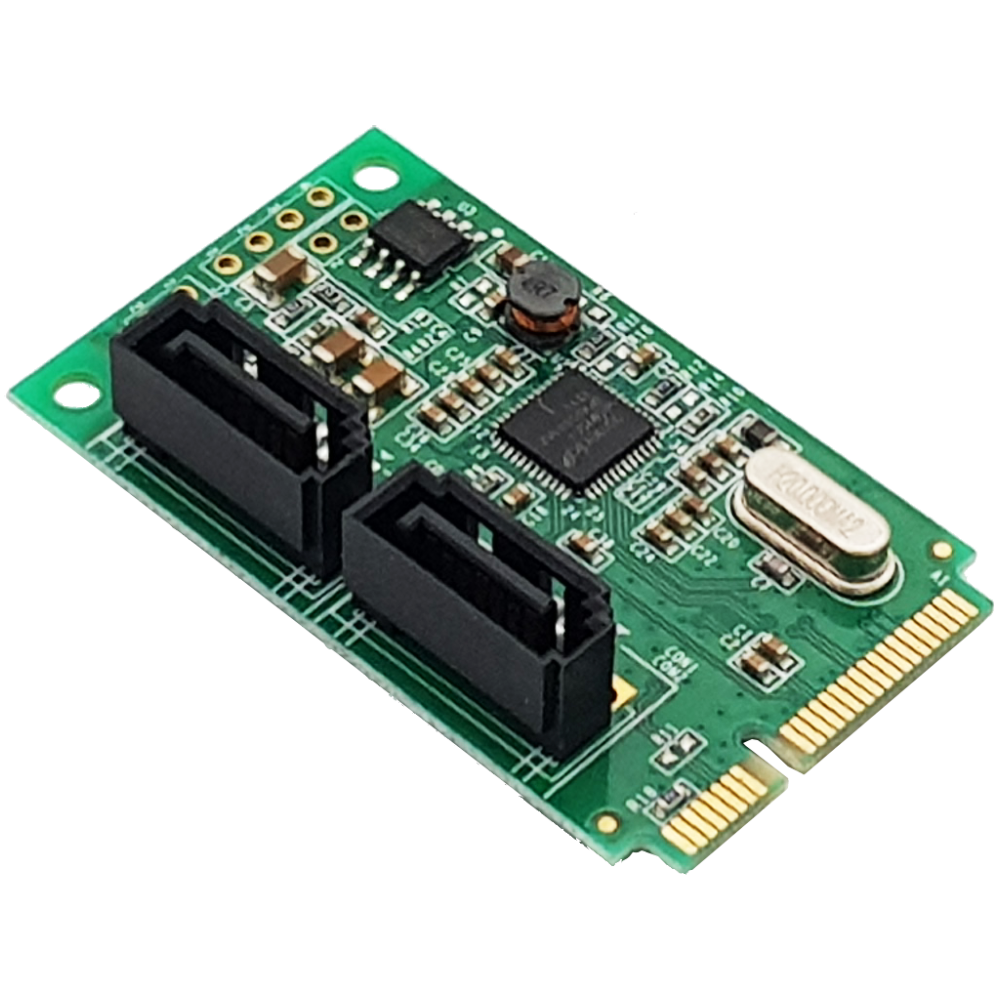

MINIPCIE 2-PORT SATA III CARD

    • Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps
    • Port Multiplier FIS-based and Command-based switching supported
    • Uses existing SATA I/II connectors and cabling
    • Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
    • Ships with a full profile bracket install, low profile included
    • Includes a Low-Profile/half-height installation bracket

    APPLICATION

    • Add a high speed FireWire port to a motherboard or NB without any FireWire ports
    • Connect a digital camera to a desktop with a MiniPCI-e slot to download photos and video
    • Connect a high-speed external hard drive to a MiniPCI Express-enabled system

    TECHNICAL SPECIFICATIONS

    HARDWARE
    Bus Type:Mini PCI-eCard Type:EmbeddedChipset ID:ASMedia-ASM1061Interface:SATA IIIPort Style:Integrated on CardPort Numbers:2

    ATAPI Support:YesBootable:YesMaximum Data Transfer Rate:6 GbpsNumber of Drives Supported Through Port Multiplier:1 to 5Number of Ports That Support Port Multiplier:2 (can only use 1 PM at a time)Port Multiplier:YesType and Rate:SATA III (6 Gbps)

    Connector Type(s):1-Mini PCI Express x1 (52 pin) MaleInternal Ports:2-SATA (7 pin, Data) Plug

    Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Mac OS® 10.4 to 10.10Linux 3.5.x to 4.11.x LTS Versions Only

    Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)
    Certification
    CE - FCC - ROHS
