1004MTME

1004MTME

$10.00 USD
$10.00 USD
Sale Sold out

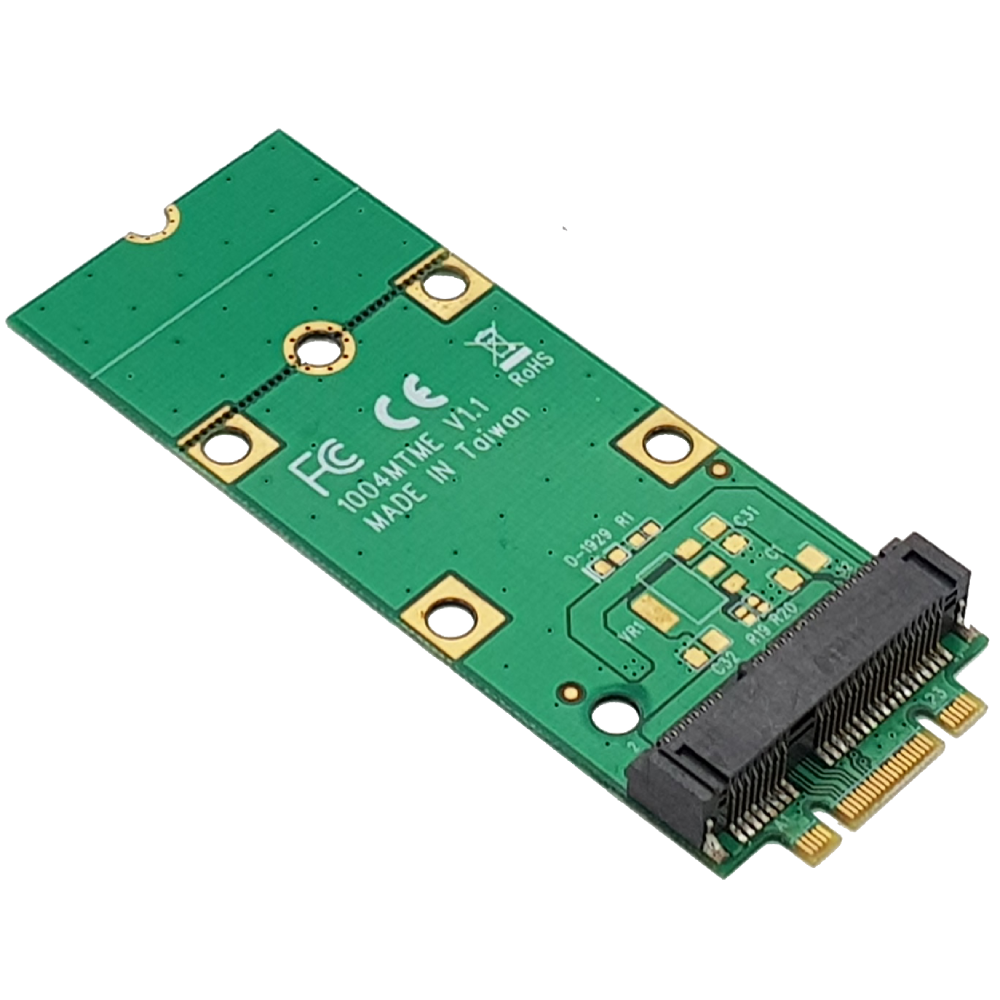

M.2 TO MINIPCI-E RISER CARD

  • PCI Express base Specification 1.1 (Up to 2.5Gpbs)
  • M.2 Specification Revision 0.9 Socket 1
  • Support 2230 M.2 Card dimension.
  • Support M.2 B+M Key Card Type
  • Supports system bus interface: PCIe&USB2.0.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC.
  • Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
  • No drivers needed for this mini PCI-E to M.2 Card Adapter
  • Support SIM slot for 3G card

TECHNICAL SPECIFICATIONS

HARDWARE
Bus Type:m.2 B and M keyCard Type: M.2 2230Interface: MiniPCI-ePort Numbers: 1

Connector Type(s):M.2(NGFF) B and M keyInternal Ports:1-Mini PCI Express x1 (52 pin) Slot Female

OS Independent; No additional drivers or software required

Humidity: 5~85% RHOperating Temperature:0°C to 70°C (32°F to 158°F)Storage Temperature:-20°C to 85°C (-4°F to 185°F)

CE - FCC - ROHS
